Robe

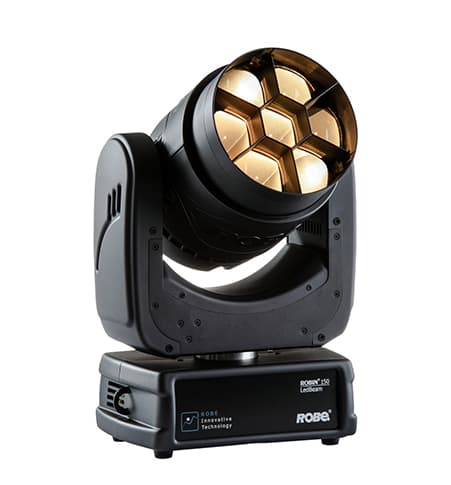

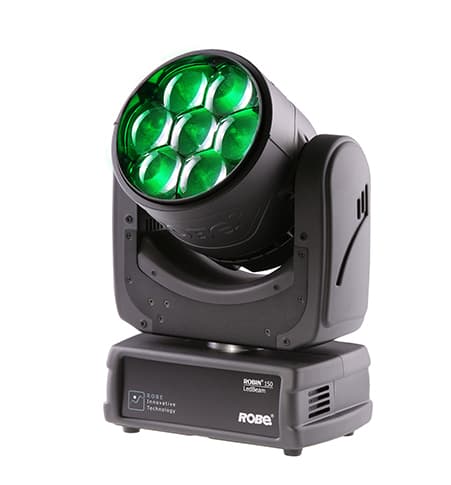

LED Beam 150

ROBE LEDBeam 150 rental
ROBE LEDBeam 150 rental
ROBE LEDBeam 150 rental
Robe

LED Beam 150

In Stock and ready to ship rentals

High-efficiency zoom system, color chases, and fast movement.

People who were interested in this product also liked:

Moonlite rental

Lumen Radio Moon Lite Transceiver (CRMX)

Read more
Smoke Factory Tour Hazer II 120v

Smoke Factory Tour Hazer II 120v

Read more

Details

Downloads

Shipping

Details

The ROBE LEDBeam 150, is a compact lighting fixture that offers a wide range of features, including a high-efficiency zoom optical system with a range of 3.8° to 60°, and an innovative lens coating technology that ensures bright and clear lenses, no scratches or marks, higher light output, and longer intervals between cleaning. This fixture is powered by a cluster of high-power multichip 40W RGBW LEDs and offers attractive colorful chases and smooth transitions. It also has highly optimized motorized control that produces speedy pan and tilt movement, intense strobing capabilities, and gentle 18-bit dimming, including Tungsten lamp effects.

The LEDBeam 150 is also versatile and easy to control with DMX-512 and RDM protocols, wireless CRMX technology from Lumen Radio, and automatic Pan/Tilt position correction.

The ROBE LEDBeam 150, is a compact lighting fixture that offers a wide range of features, including a high-efficiency zoom optical system with a range of 3.8° to 60°, and an innovative lens coating technology that ensures bright and clear lenses, no scratches or marks, higher light output, and longer intervals between cleaning. This fixture is powered by a cluster of high-power multichip 40W RGBW LEDs and offers attractive colorful chases and smooth transitions. It also has highly optimized motorized control that produces speedy pan and tilt movement, intense strobing capabilities, and gentle 18-bit dimming, including Tungsten lamp effects.

The LEDBeam 150 is also versatile and easy to control with DMX-512 and RDM protocols, wireless CRMX technology from Lumen Radio, and automatic Pan/Tilt position correction.

Downloads

Shipping

This equipment has been inspected by a Main Light certified technician at one of our locations.

01

Features

Source

  • Light source type: 7x 40W RGBW multichips
  • LED life expectancy: min. 50.000 hours
  • Typical lumen maintenance: L70/B50 @ 50.000 hours

Optical system

  • Robe’s proprietary optical design
  • High - efficiency zoom optical system, ratio: 15,5:1
  • Zoom range: 3,8° - 60°
  • Fixture total lumen output: 2.842 lm
  • Illuminance: 12.200lx @ 5 m
  • Innovative lens coating technology (Patent pending)

Dynamic Effects and Features

  • Colour mixing mode RGBW or CMY
  • Variable CTO: 2.700K - 8.000K
  • Virtual Colour Wheel: with 66 preset swatches
  • Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4.200K (red shift and thermal delay)
  • Motorized zoom
  • Pre-programmed random strobe & pulse effects
  • High resolution electronic dimming: 0 - 100%

Control and programming

  • Setting & Addressing: two-row LCD display & 4 control buttons, stand-alone operation with 3 editable programs (each up to 40 steps)
  • Protocols: USITT DMX-512, RDM
  • Wireless CRMX™ technology from Lumen Radio - on request
  • DMX Protocol modes: 2
  • Control channels: 22, 16
  • Pan/Tilt resolution: 8 or 16 bit
  • RGBW/CMY: 8 or 16 bit
  • Zoom: 8 or 16 bit
  • Dimmer: 8 or 16 bit (internal 18 bit)

Movement

  • Pan movement: 450°
  • Tilt movement: 228°
  • Movement control: Standard and Speed
  • Controllable speed of Pan/Tilt movement
  • Automatic Pan/Tilt position correction
02

Specifications

Thermal specification

  • Maximum ambient temperature: 45°C (113°F)
  • Maximum surface temperature: 80°C (176°F)
  • Minimum operating temperature: -5°C (23°F)

Noise Levels

Sound pressure level:

  • 18 dB(A) at 1 m (quiet mode)
  • 34 dB(A) at 1 m (auto mode)

Sound power level:

  • 26 dB(A) (quiet mode)
  • 42 dB(A) (auto mode)

Electrical specification and connections

  • Power supply: Electronic auto-ranging
  • Input voltage range: 100-240 V, 50/60 Hz
  • Power consumption: Max. 220 W
  • Power in/out connector: Neutrik powerCON in/out
  • DMX and RDM data in/out: Locking 5-pin XLR

Approvals

  • CE Compliant
  • cETLus Compliant

Mechanical specification

  • Height: 337 mm (13.3")
  • Width: 244 mm (9.6")
  • Depth: 149 mm (5.9")
  • Weight: 5.7 kg (12.6 lbs)
  • Ingress protection rating: IP20

Rigging

  • Mounting points: 1 pair of ¼-turn locks
  • 1x Omega adaptor with ¼-turn quick locks
  • Universal operating position
  • Safety cable attachment point
