MA Lighting
grandMA3 Full Size
MA Lighting
grandMA3 Full Size
$69,995
In Stock and ready to ship in the U.S.
120 physical playbacks, assignable x-keys, and 12,288 control parameters.
Depot Warranty: 60-Day Depot Warranty
Condition: Excellent
Ships from: United States
People who were interested in this product also liked:
Details
Downloads
Shipping
Details
Top-tier lighting control for professionals. Flexible playback platform with multi-touch screen, assignable wheel sections, and dual encoders.
Top-tier lighting control for professionals. Flexible playback platform with multi-touch screen, assignable wheel sections, and dual encoders.
Downloads
Shipping
Used Sales This equipment has been inspected by a Main Light certified technician at one of our locations.
01
Features
- Real-time control for up to 250 000 parameters per session in connection with grandMA3 processing units
- 6 DMX outputs, 1 DMX input

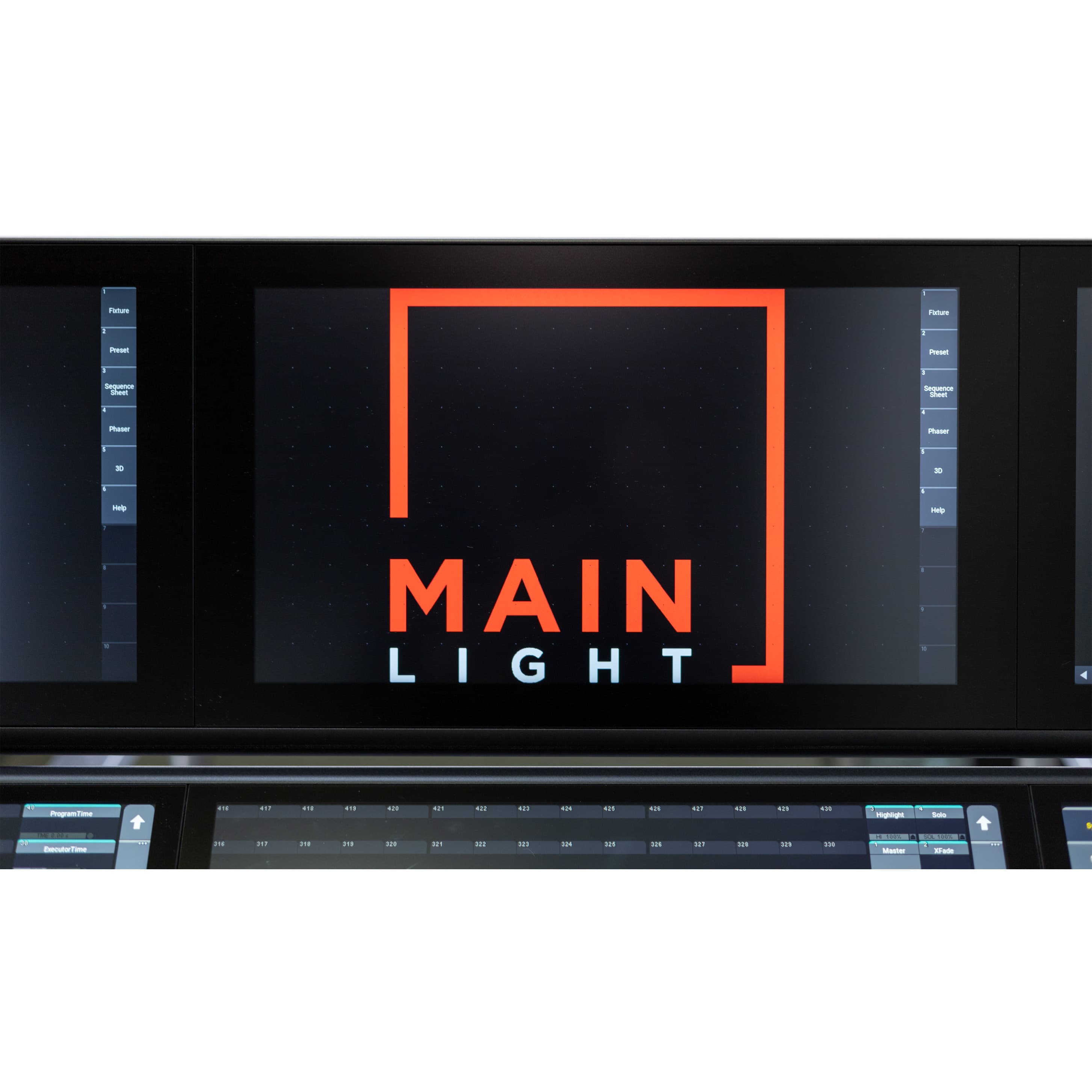

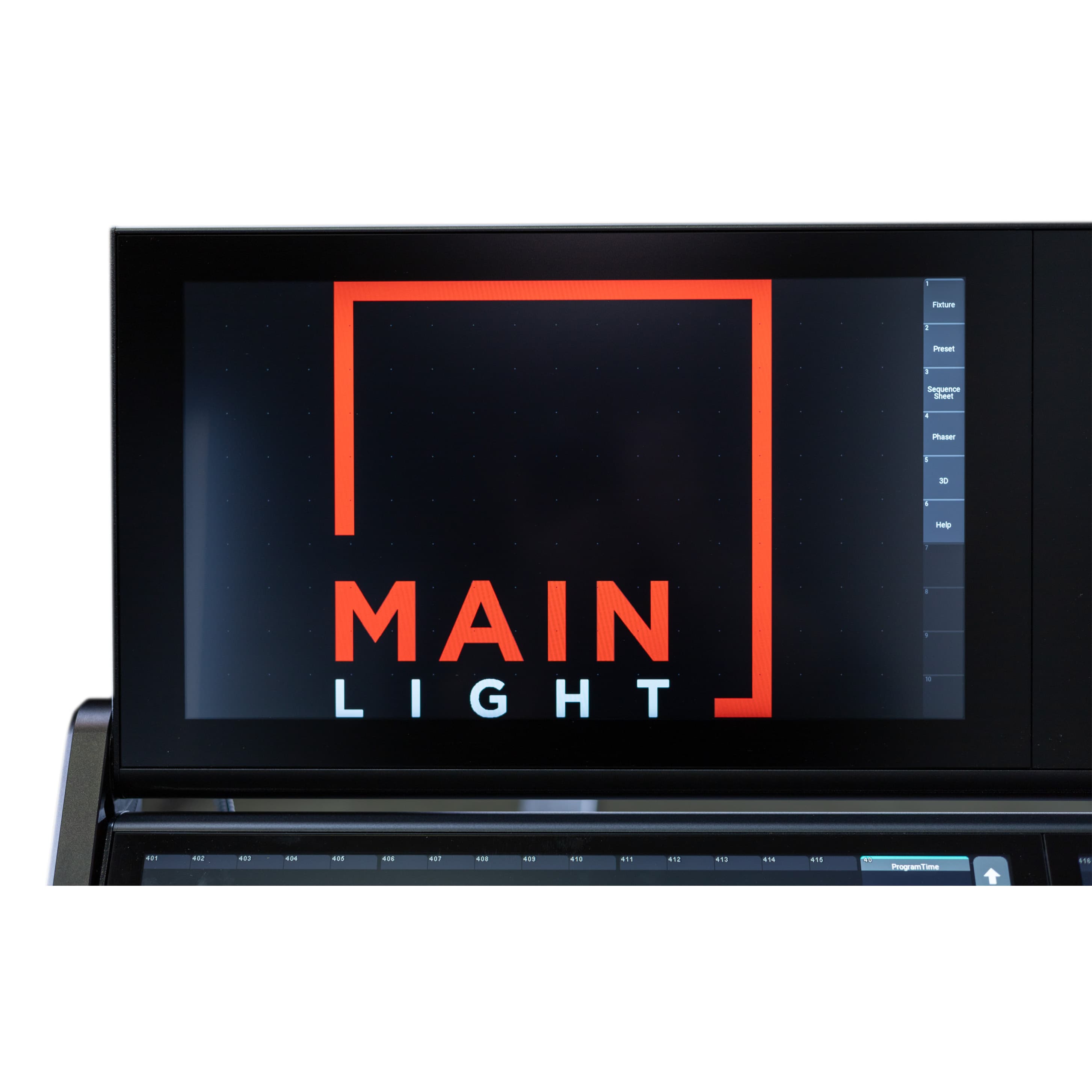

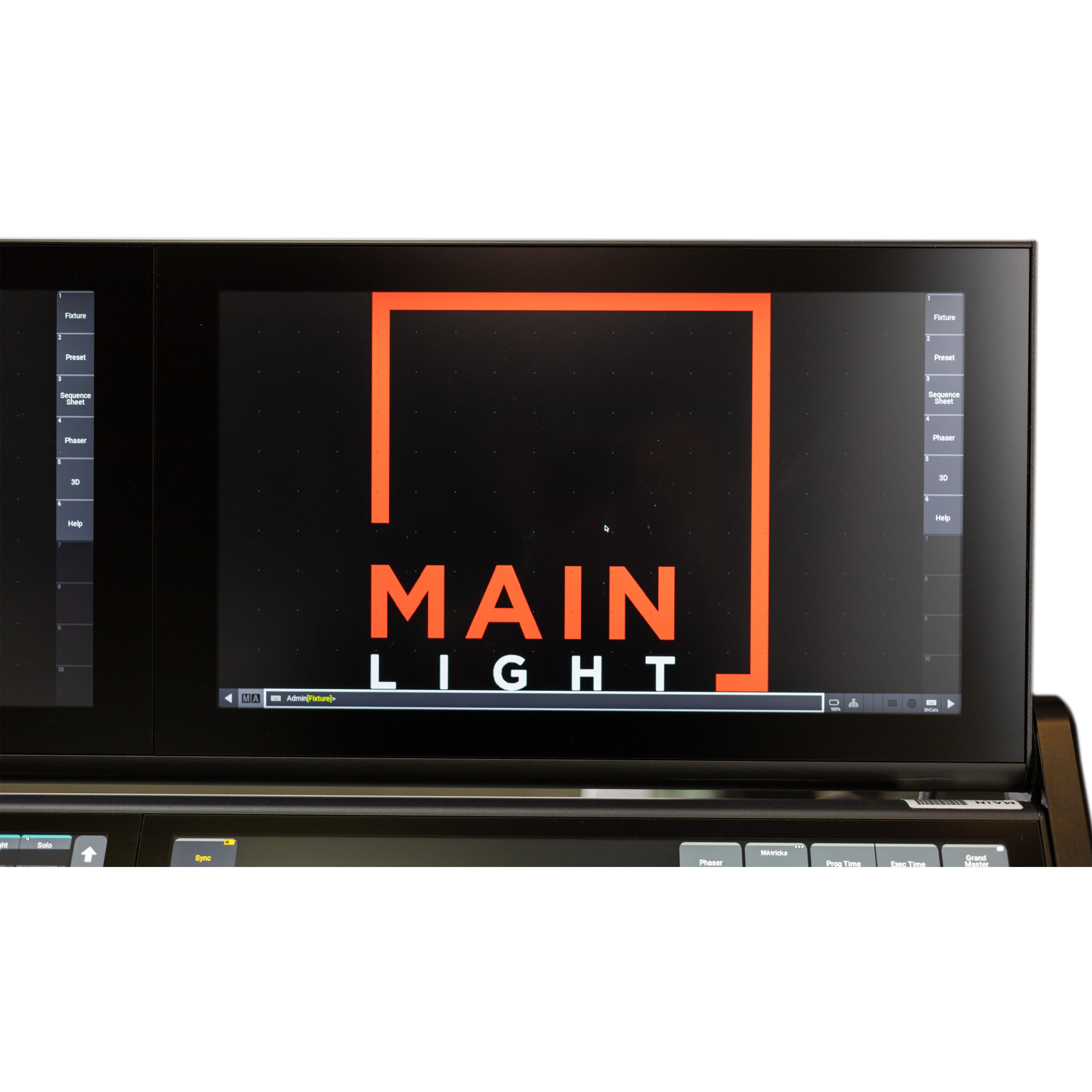

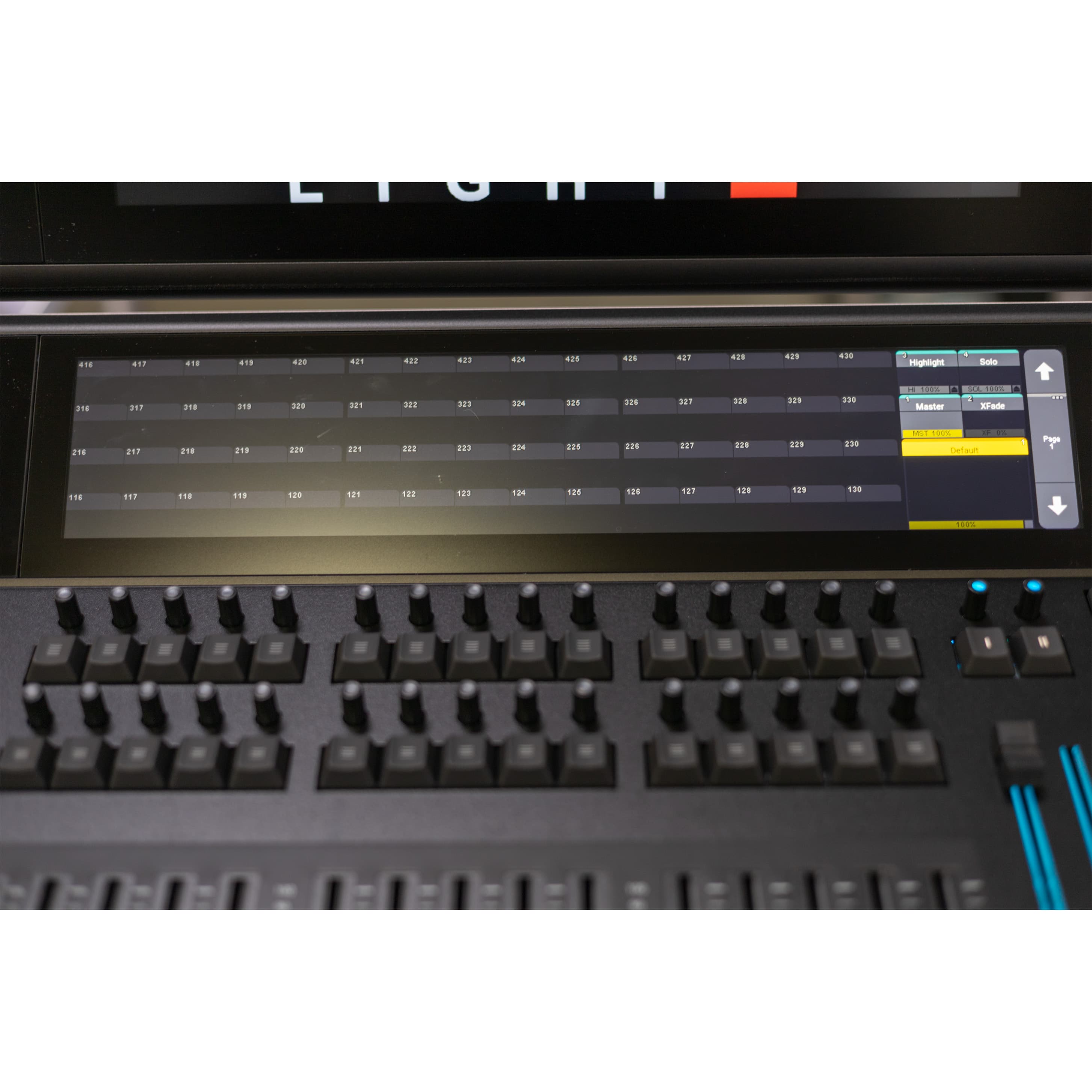

- 3 internal foldable monitor multi-touch screens
- 3 internal letterbox multi-touch screens

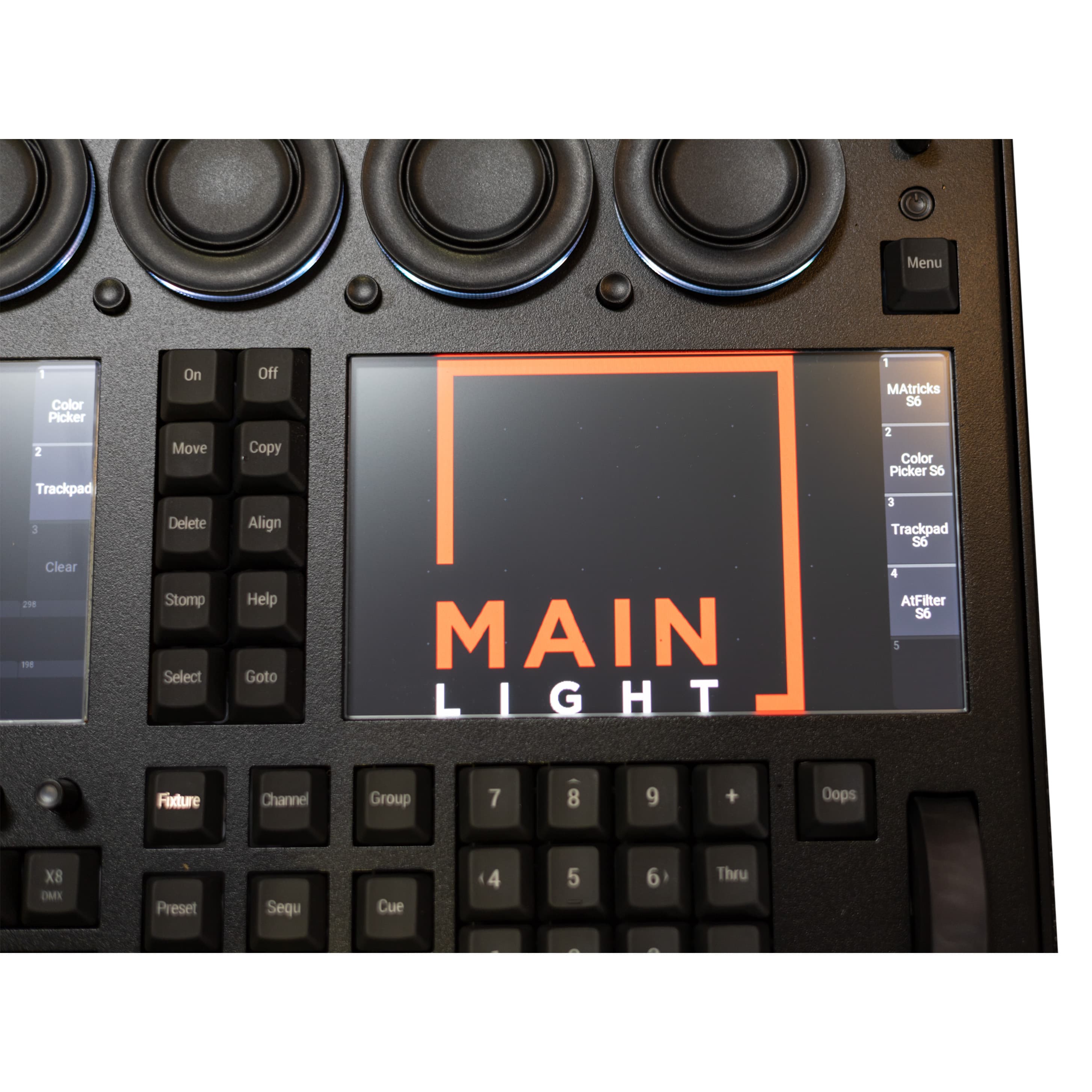

- 2 internal multi-touch command screens
- 2 external multi-touch screens can be connected
- 2 multipurpose level wheels
- 2 multipurpose single encoder
- 71 rotary RGB backlit encoder

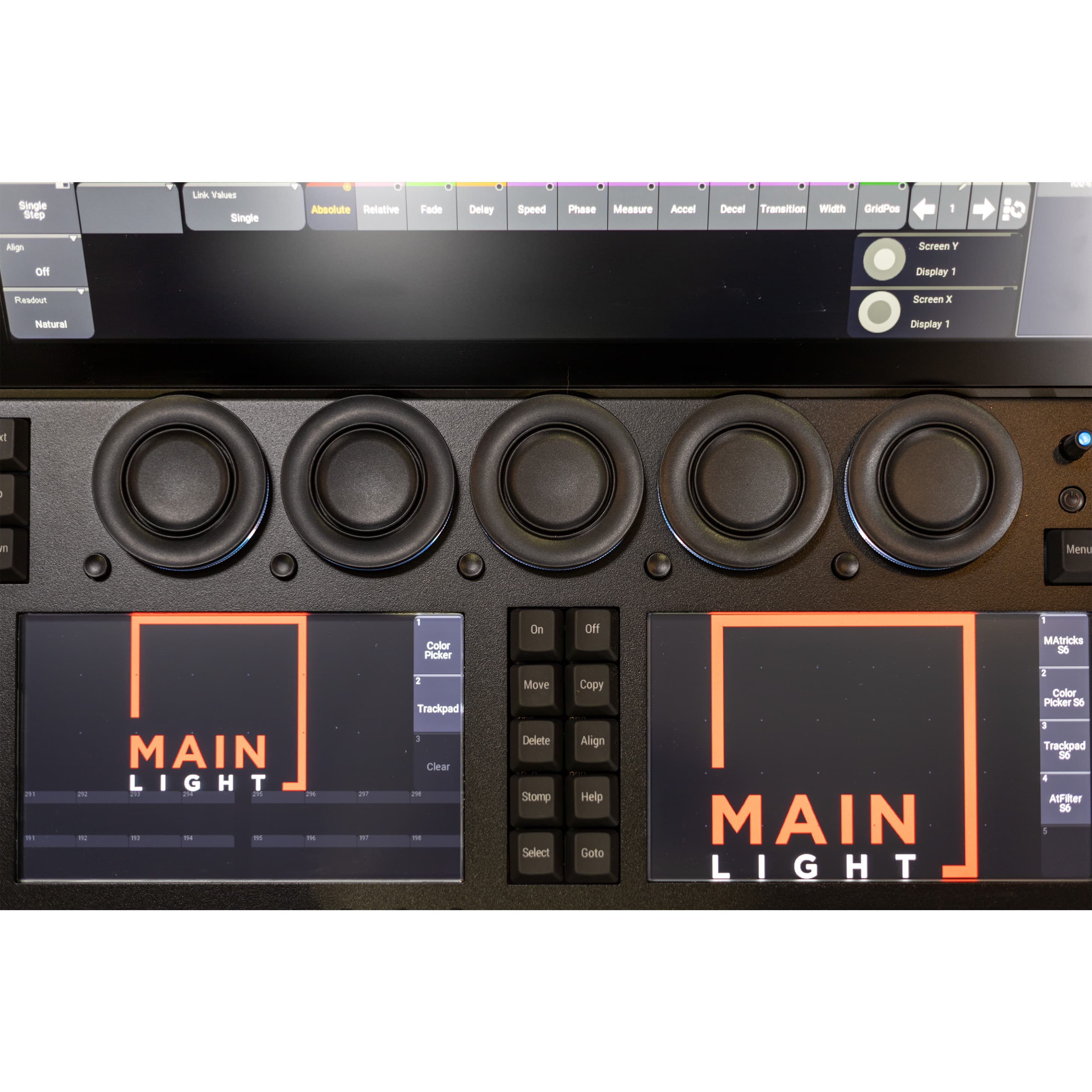

- 5 backlit dual encoders

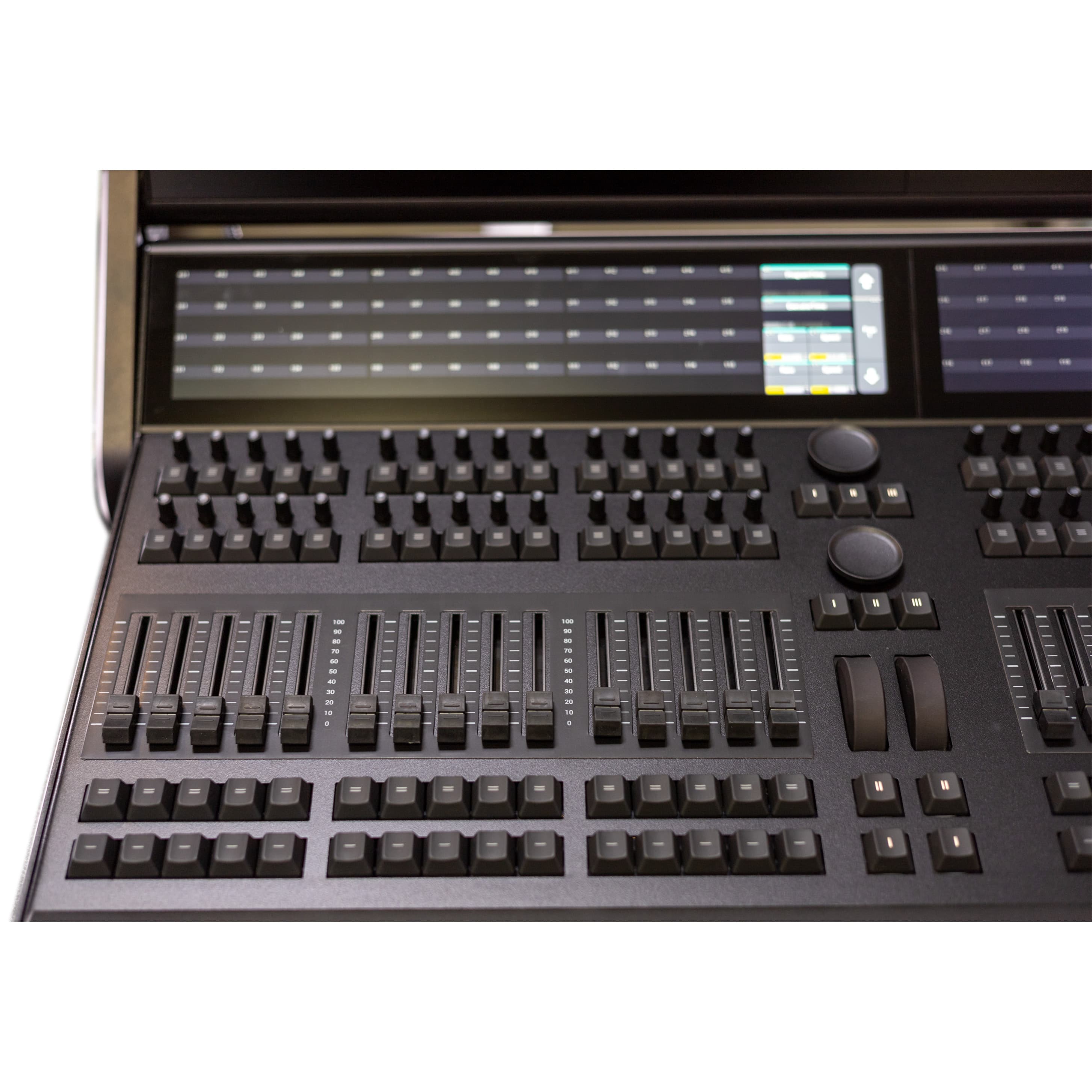

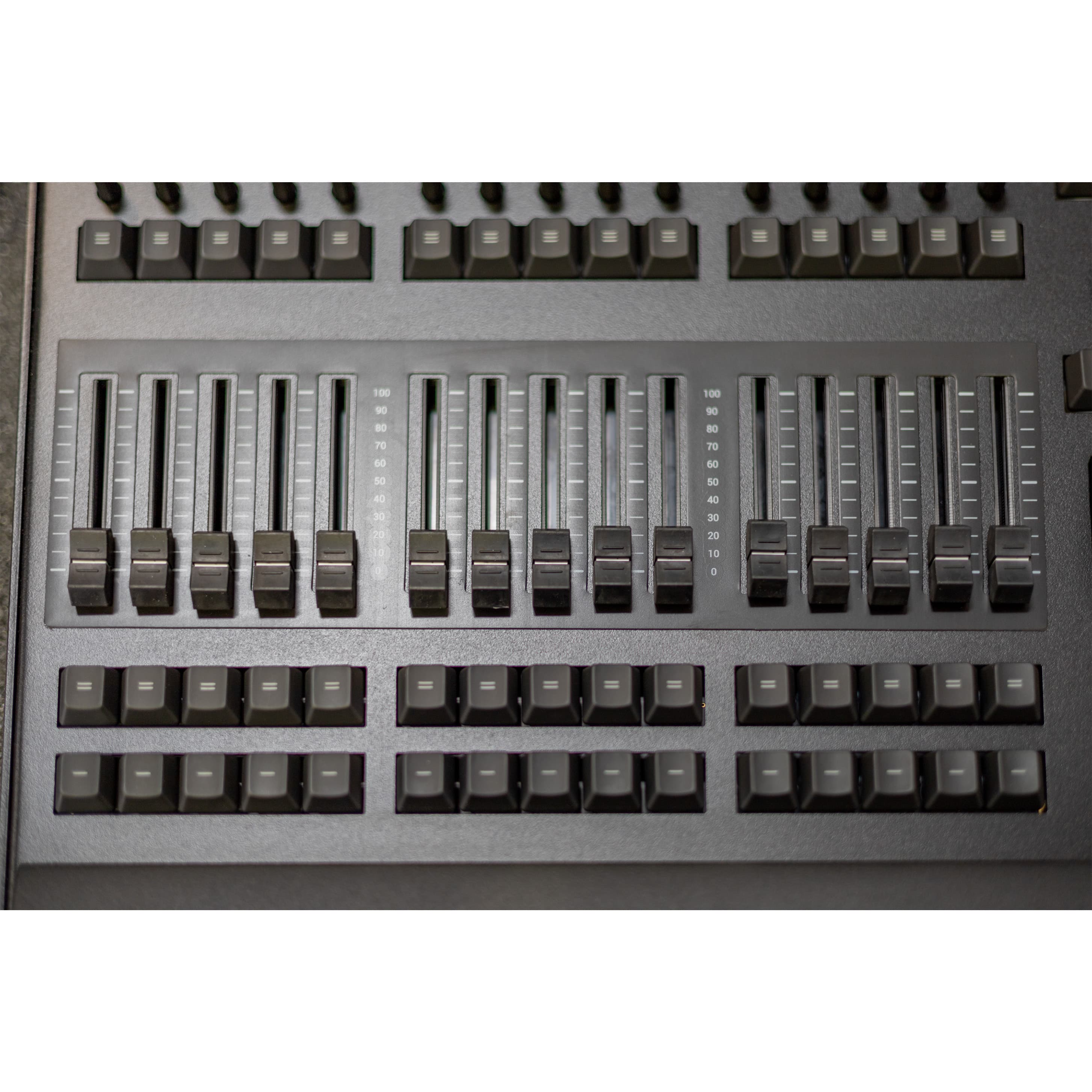

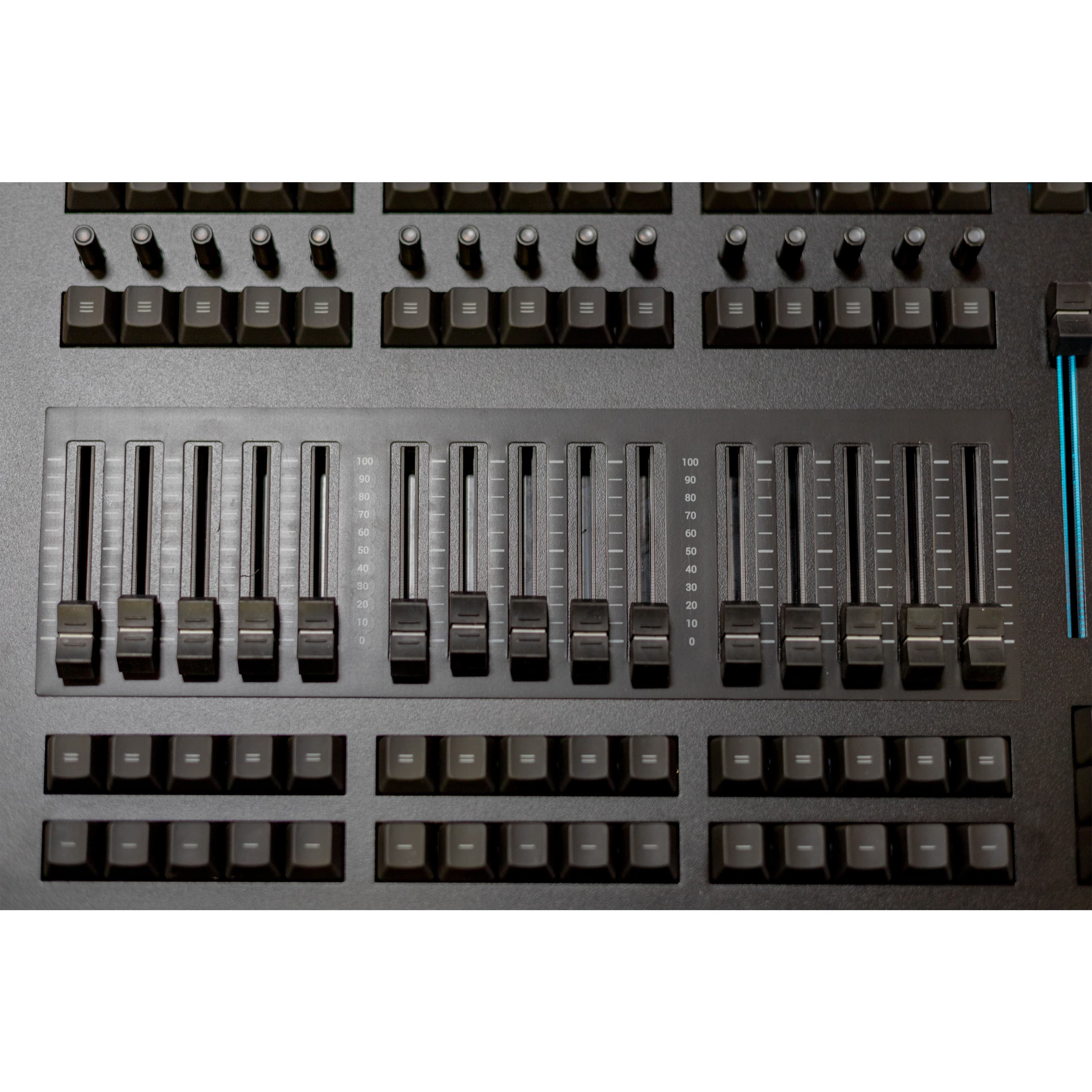

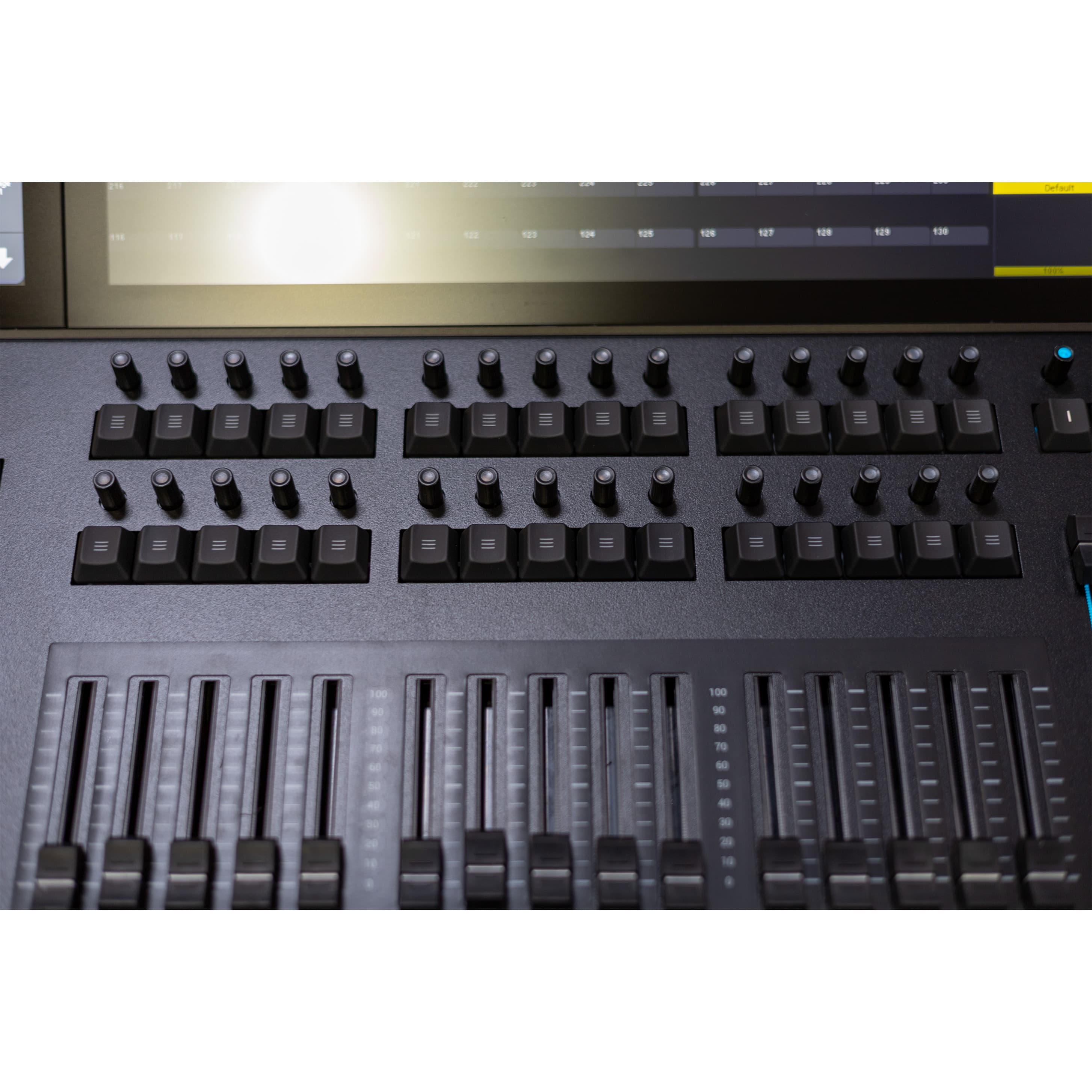

- 30 backlit motorized 60 mm faders
- 120 separate playbacks
- 16 assignable x-keys
- Integrated keyboard drawer
- Built-in uninterruptible power supply (UPS)
- 3 etherCON connectors, 6 USB connectors

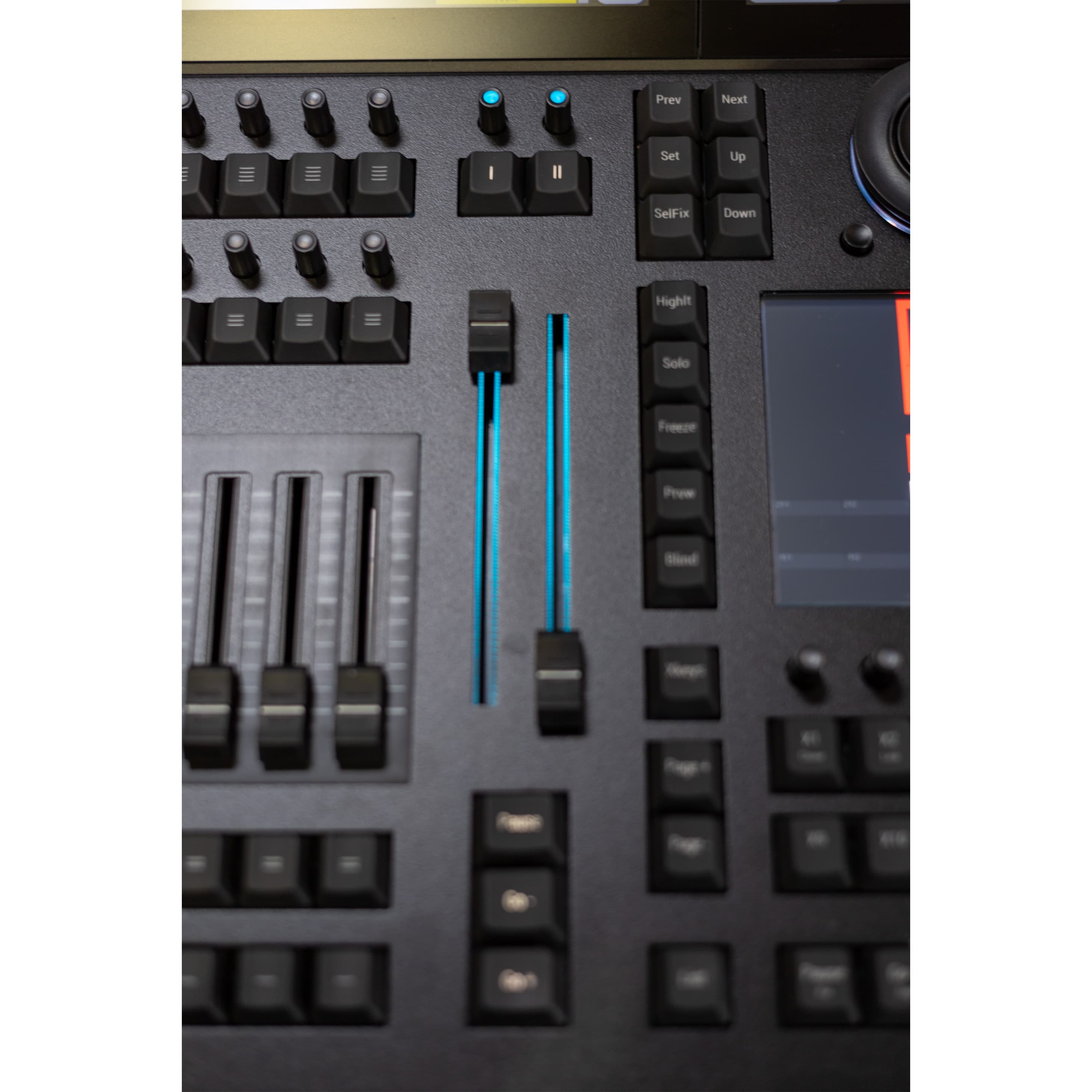

- 2 backlit motorized A/B faders 100 mm

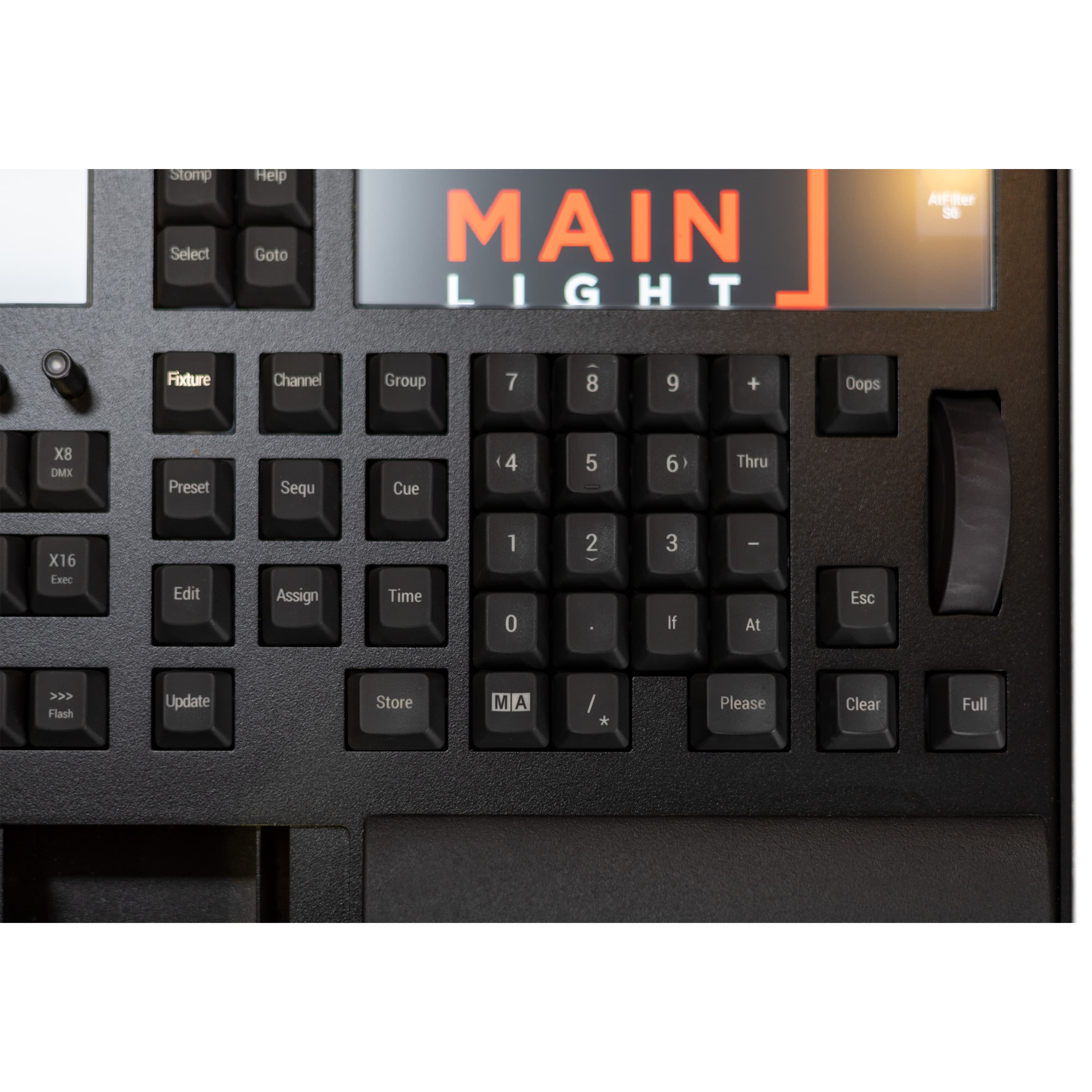

- Individually backlit and dimmable silent (clickless) keys
02
Specifications
- Parameters: 12,288 (HTP/LTP)
- Parameters Mode2: 8,192 (HTP/LTP)
- Operating voltage/Supply voltage: AC 100 - 240 V; 50/60 Hz
- Power: max. 300 VA
- Operating Temperature: 0 °C up to 40 °C / 32 °F up to 104 °F
- Dimensions:
- 1,256 x 539 x 181 mm / 50 x 22 x 8 in (width x depth x height, folded and drawer closed)
- 1,256 x 584 x 409 (max. 450) mm / 50 x 23 x 17 (max. 18) in (width x depth x height, unfolded for operation)
- 1,256 x 871 x 255 mm / 50 x 35 x 10 in (width x depth x height, maximally unfolded and drawer opened)
- Net weight: 44 kg / 98 lbs
- Connectors:
- 1 x powerCON TRUE1
- 3 x etherCON/RJ45
- 6 x DMX512-A Out (5pin XLR female)
- 1 x DMX512-A In (5pin XLR male)
- 1 x MIDI In (5pin DIN female)
- 1 x MIDI Out (5pin DIN female)
- 1 x Linear Timecode (3pin XLR female)
- 1 x Audio In (3pin XLR female)
- 1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control
- 2 x DisplayPort 1.2 for external screens
- 2 x S/PDIF In and Out
- 3 x USB 2.0 (type A)
- 3 x USB 3.0 (type A)
- 2 x LED desk light (4pin XLR female)
