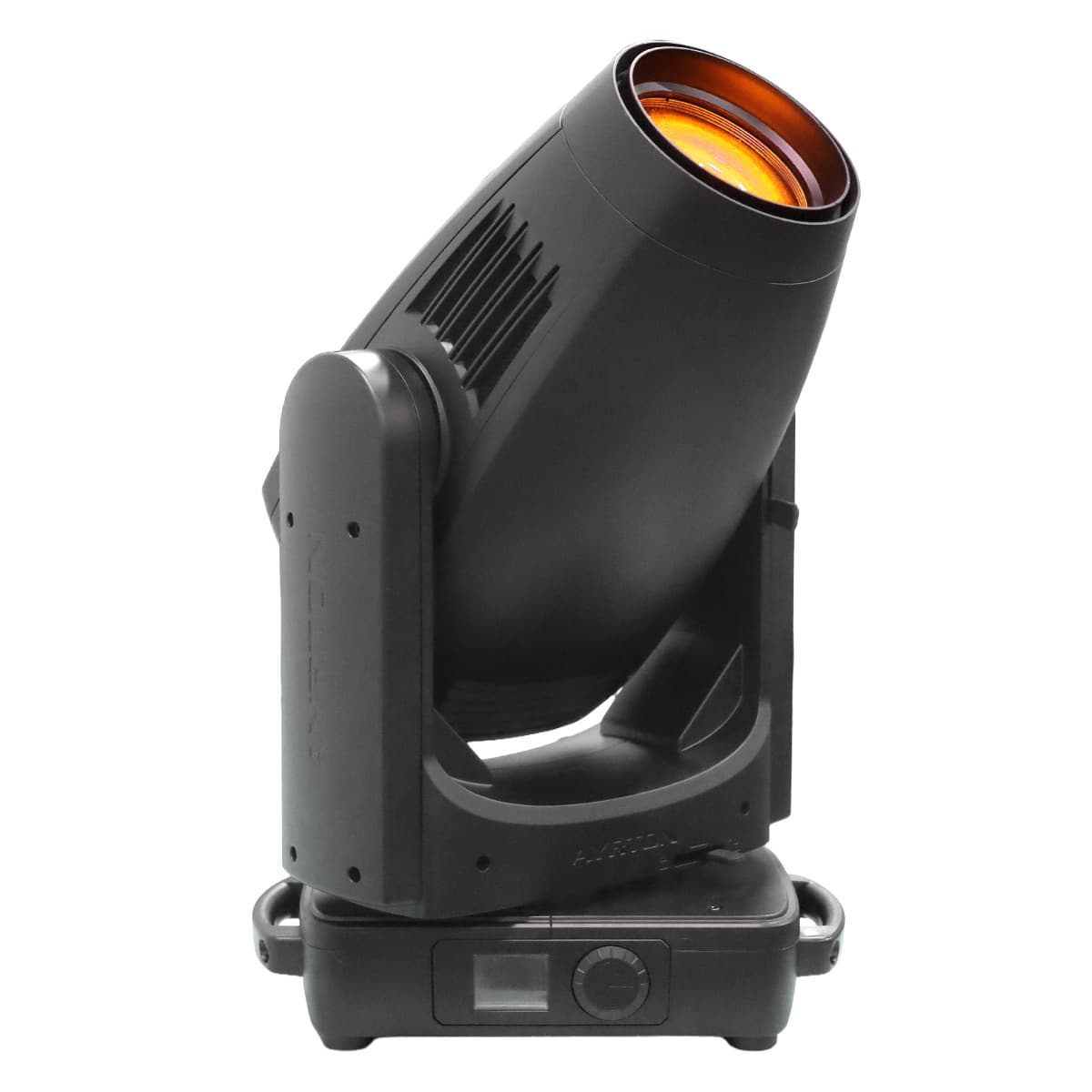

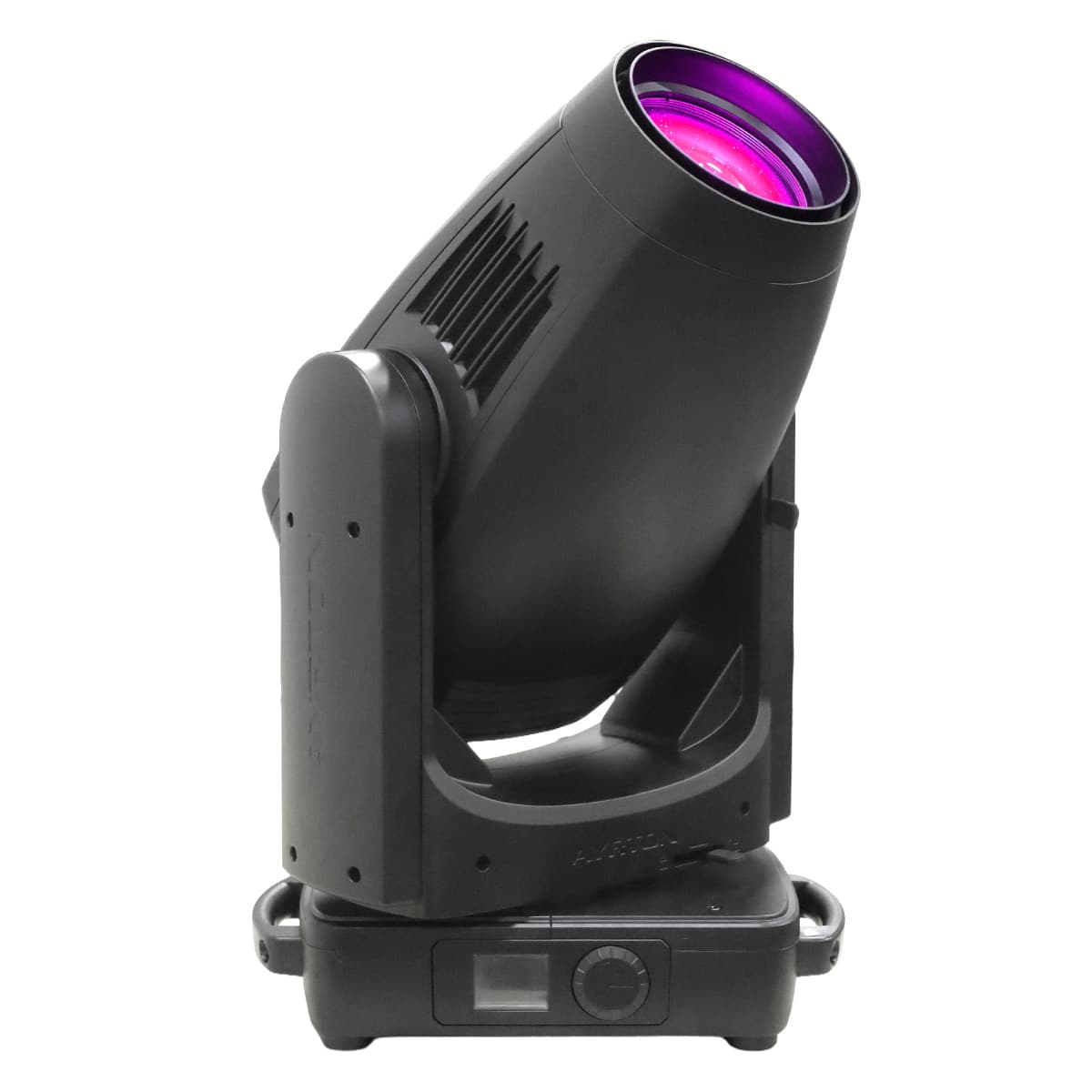

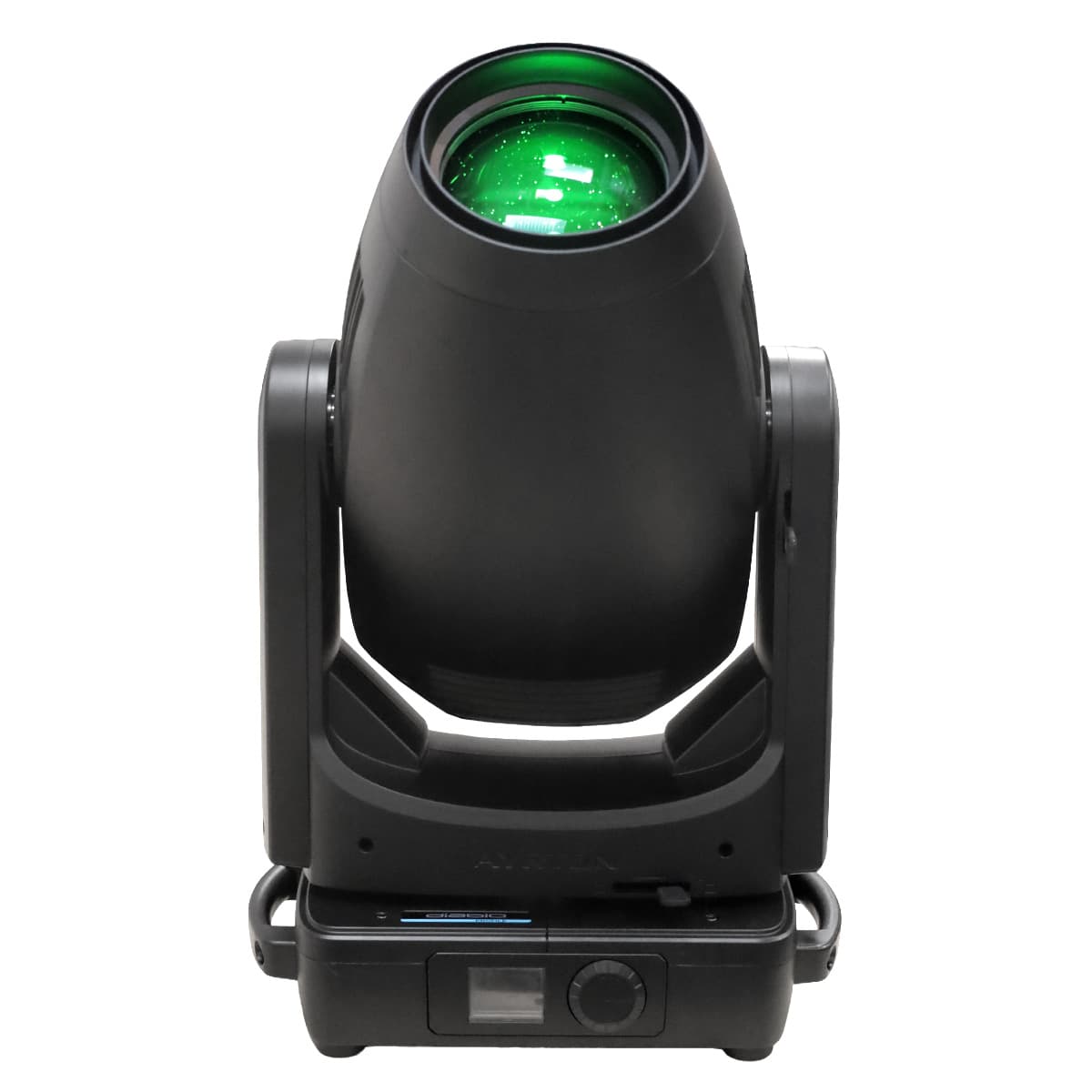

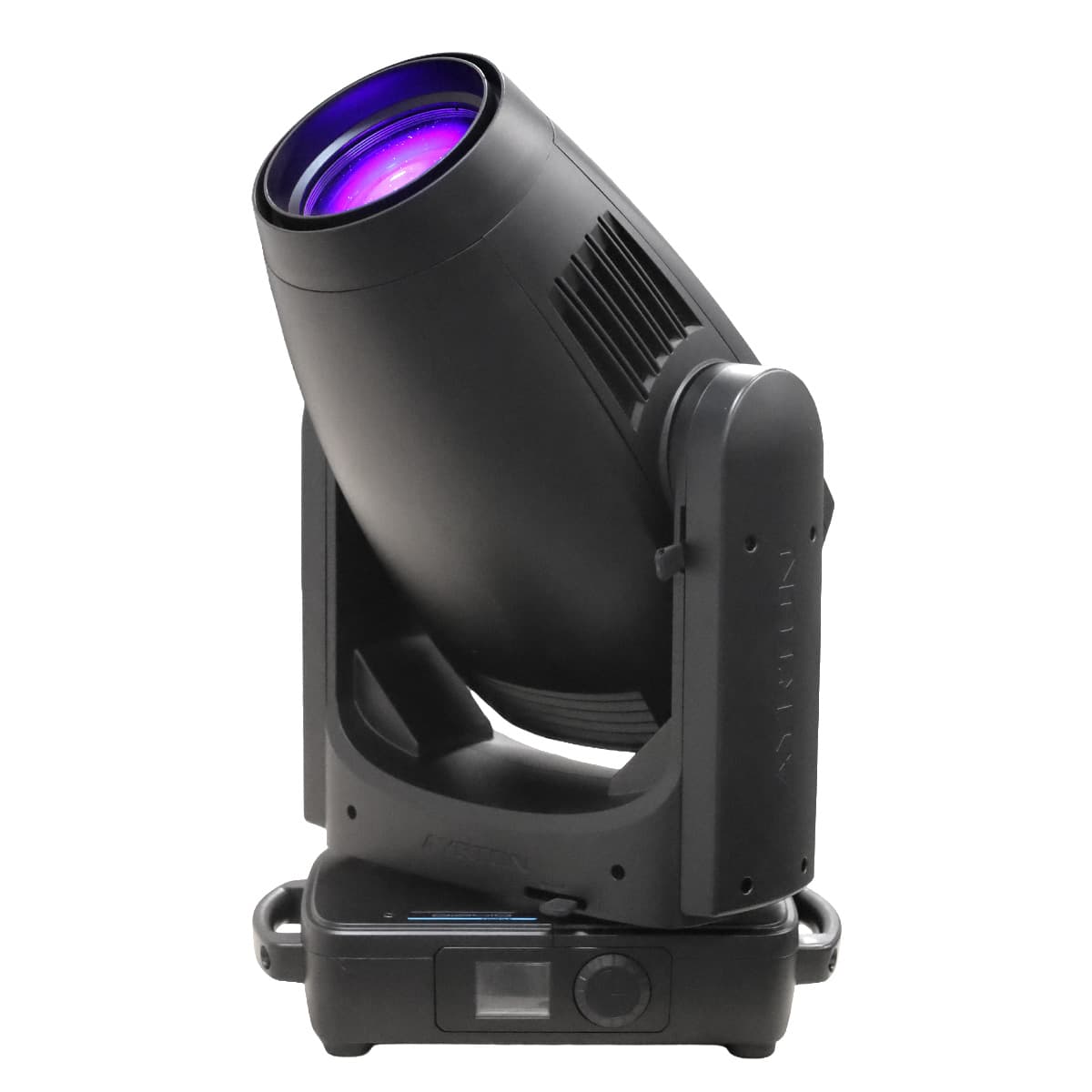

Ayrton Diablo-S

Optics

• 13-element 7.5:1 zoom high-resolution optic system
• Beam aperture: 7° to 53°
• Fast motorised linear zoom
• Tempered anti-reflective coated lenses
• 119 mm frontal lens for greater performance

Light Source

Diablo-S

• 26,500 lumens, 8000 K white-light engine
• Total luminaire output: up to 19,000 lumens
• Colour temperature output: 7000 K
• CRI: greater than 70

Diablo-TC

• 20,500 lumens 7000 K white-light engine
• Total luminaire output: up to 14,000 lumens
• Colour temperature output: 6000 K
• CRI: greater than 90

Diablo-S & Diablo-TC

• Rated life (L70): up to 40,000 hours
• Flicker-free source management suitable for TV applications and all video-recorded events

Movement

• Extremely accurate positioning
• Moving-head operated with either 8- or 16-bit resolution
• High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
• Pan and tilt with automatic repositioning
• Moving-head range: 540° (pan), 270° (tilt)

Colours

• Sophisticated colour mix system providing CMY colour mixing
• Variable CTO colour temperature correction
• Fixed colour wheel with seven complementary colours

Gobos

• Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open position
• Adjustable-speed rotating gobo in both directions
• Gobo diameter: 25.5 mm
• Image diameter: 20.0 mm
• Gobo thickness: 1.1 mm – 2.2 mm

Framing System

• 4 individually positionable shutter blades
• Rotation of the framing system module: +/- 45°

Iris Diaphragm

• Fast iris diaphragm with adjustable dynamic effects
• Iris range: 15% to 100% open

Frost

• Light frost filter (Heavy frost filter in option)

Effects

• Graphic animation effect-wheel with continuous rotation in both directions
• 5-facet circular indexable rotating prism

Dimmer / Strobe

• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second

Software Features

• Local DMX addressing of luminaire and optional parameters through a built-in LCD control panel
• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version

Hardware Features

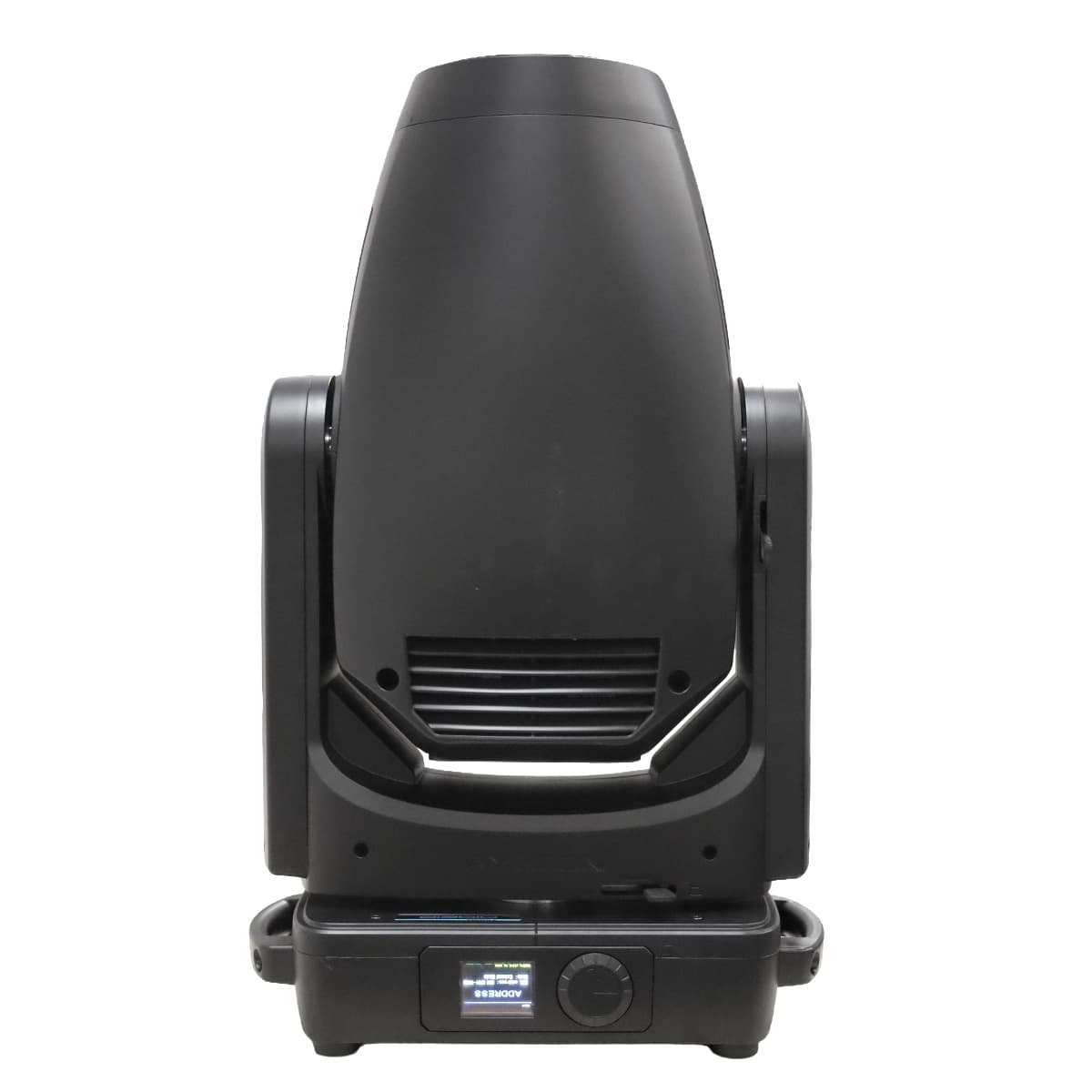

• Graphic LCD display for addressing and special functions settings, with flip function
• Clicking jog wheel to set functions
• Excess-temperature protection
• Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™

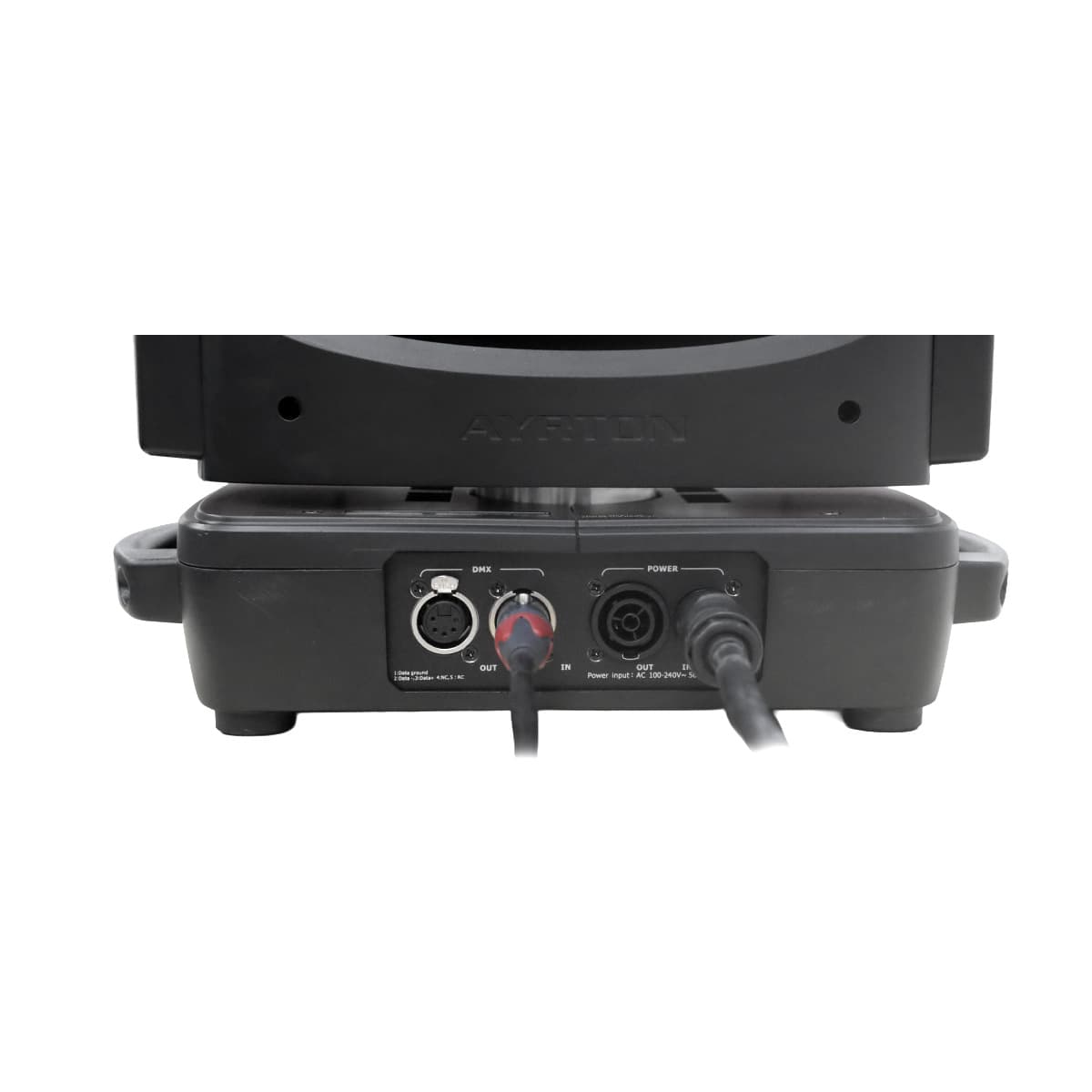

• XLR 5-pin male and female connectors for DMX connection
• powerCON TRUE1 male and female connectors for power connection

Control

• DMX 512 protocol, through DMX cable or a wireless system
• DMX-RDM compatible
• Stand-alone mode and Master/Slave modes
• Local control panel, with LCD display
• Choice of 3 DMX modes (from 34 to 56 DMX channels)

Power Supply

• Electronic supply with active PFC
• 100 to 240 Volts – 50/60 Hz
• Power: 550 W maximum

Cooling System

• Advanced liquid cooling system
• Self-adjusting variable speed fans for quiet operation (Auto mode)
• Selectable ventilation user modes including a new Silent Mode
• Safety protection against temperatures excesses

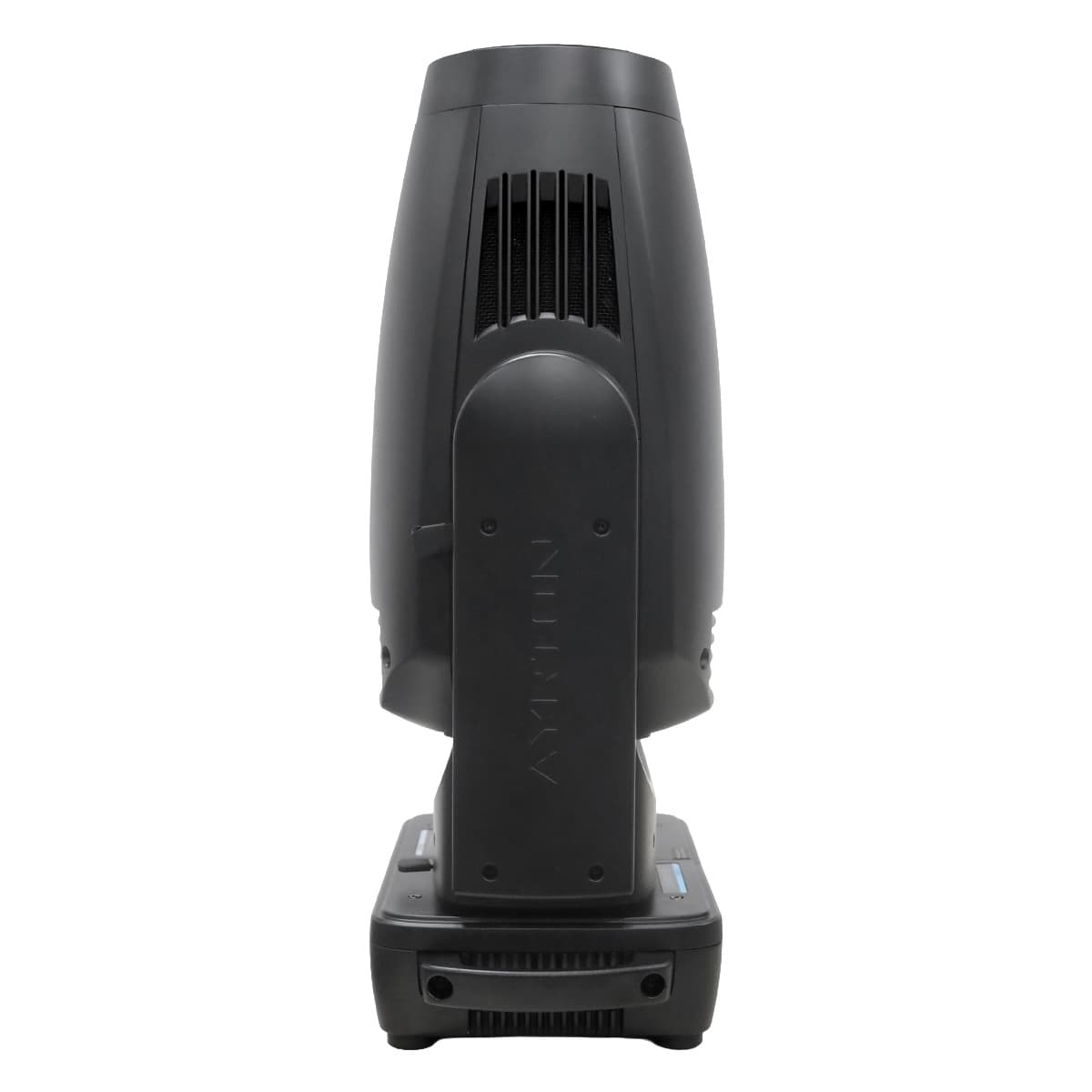

Housing

• Moving-head skeleton made of aluminium and steel metal plates
• Base in die-cast aluminium
• Aluminium and copper heatsinks
• Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
• Two-side handles for transportation
• Four heavy-duty feet for better stability
• IP20 protection rating
• Exterior finish: black (Carbon)

Installation

• Fastening-bracket system: two Omega ¼ turn brackets designed for use with standard clamps
• Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
• Safety-cable attachment point

Operating Parameters

• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
• Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
• Minimum usage distance: 1.5 m (4.92 ft)

Compliance

EU (EMC & LVD):

• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU

US (Safety & EMC):

• UL 1573
• FCC Part 15, Subpart B: 2018

Size

• Product: 365 x 591 x 212 mm (l x h x d)
• Flight-case foam: 430 x 660 x 280 mm (l x h x d)

Weight

• Product: 21.8 kg
