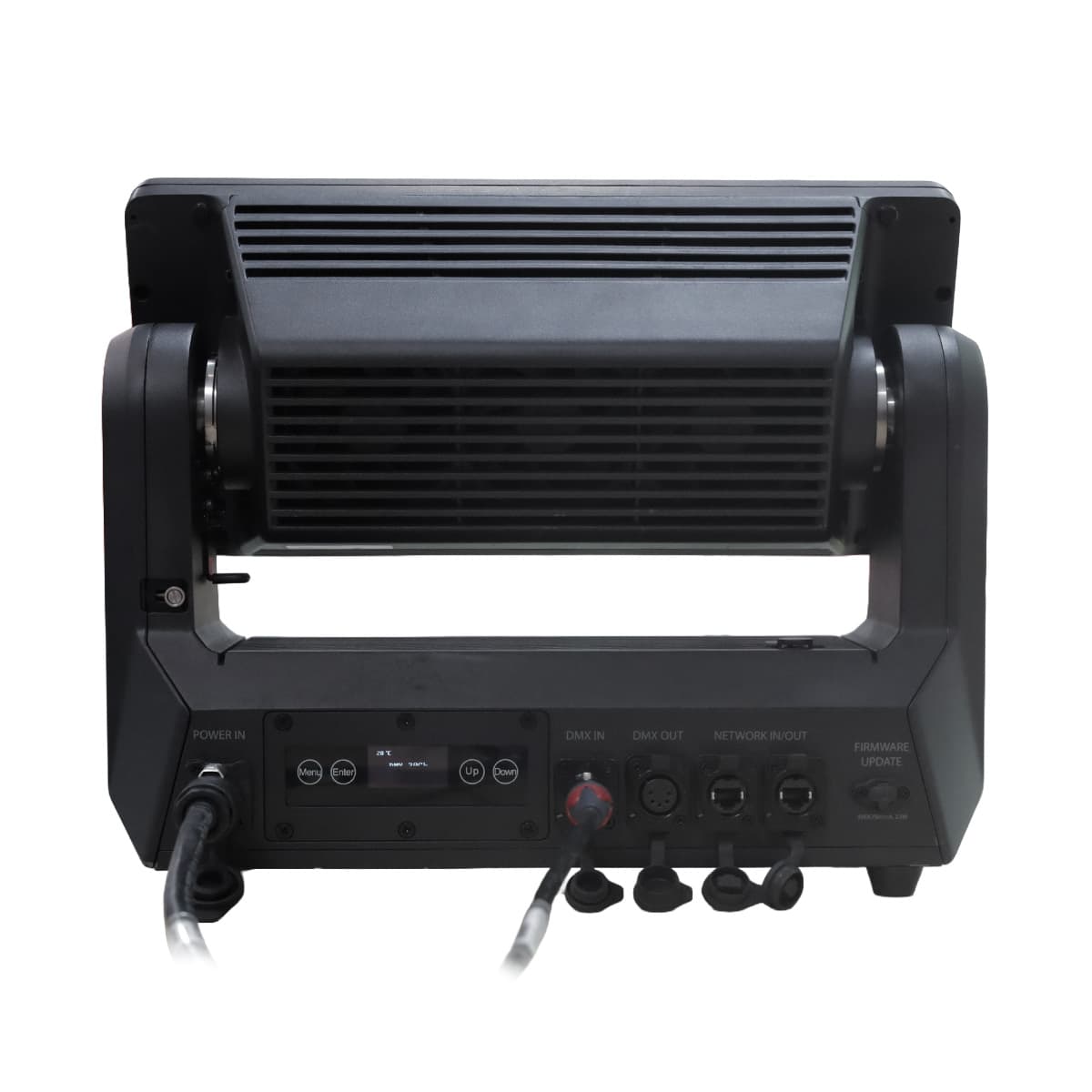

Chauvet Color Strike M IP LED Blinder Rear View

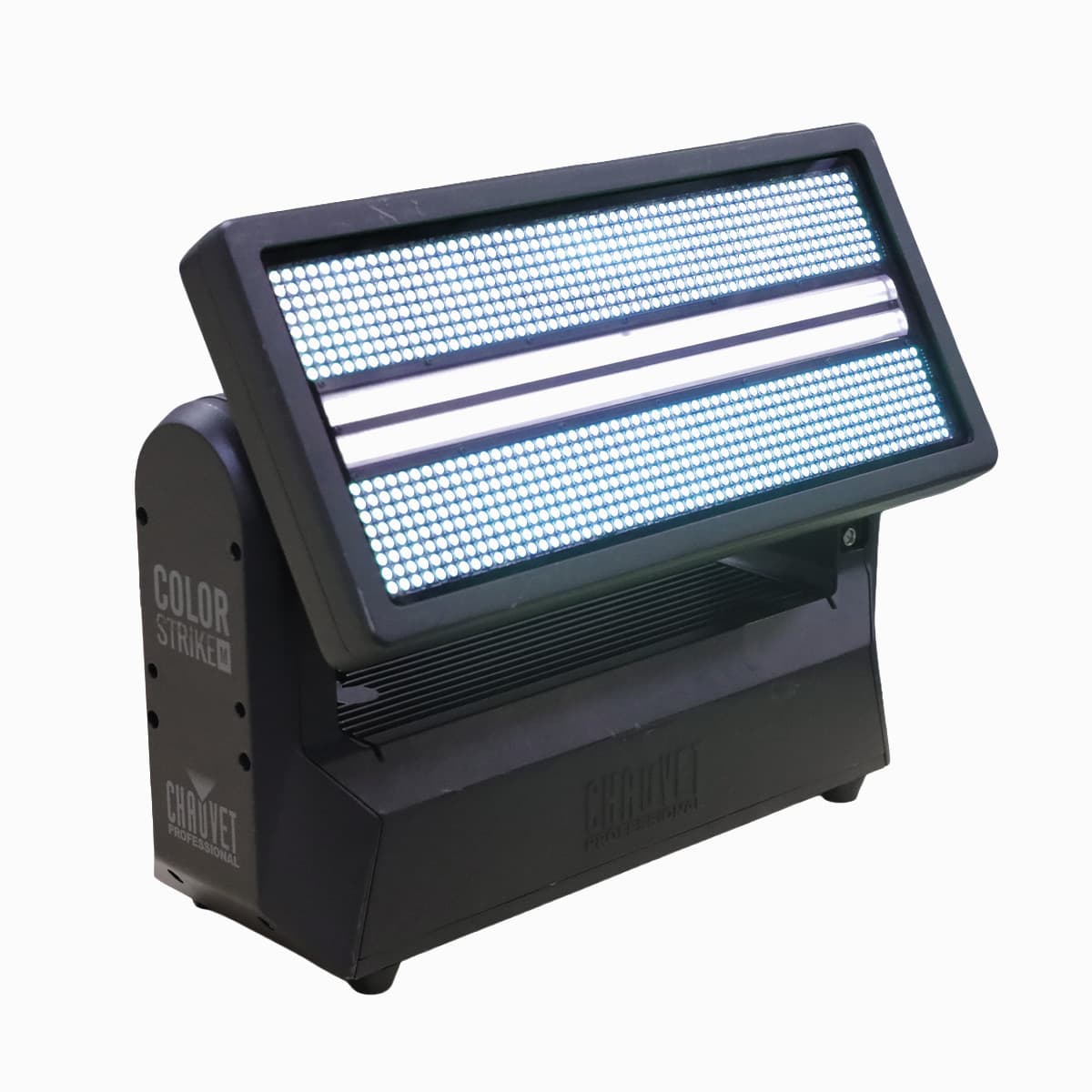

<p>Color STRIKE M is an IP65 rated motorized strobe/wash with two ultra-bright, white light tube elements surrounded by an electrifying, color-mixing, and pixel-mappable face. This versatile strobe light can double as a wash fixture with 180&deg; tilt range to throw bright saturated color wherever you need. The IP65 casing protects the fixture from any environmental factors or weather and has two omega-bracket attachments so you can mount the fixture horizontally or vertically without any hassle. Multiple programming personalities give you a varying amount of control from simple set ups with a multitude of built-in effects, or wider control options to take advantage of the pixel-mappable zones: 14 in the RGB face and 28 in the two tube elements. Built-in alignment pins insure perfectly straight linear arrays to create massive arrangements.&nbsp;DMX, Art-net, and sACN control. All LEDs feature 16-bit dimming for smooth fades and Pulse Width Modulation for on-camera use.</p>

<h2>AT A GLANCE</h2>

<ul>
	<li>
	<p>High-power, 180&deg; tilting hybrid strobe/wash with IP65 rating for all-weather use.</p>
	</li>
	<li>
	<p>14 controllable sections of RGB LEDs and 28 sections of control of the white strobe LEDs.</p>
	</li>
	<li>
	<p>Multiple mounting locations and repositionable yoke with &frac14; turn adaptors for creative and convenient rigging options in vertical and horizontal orientations</p>
	</li>
	<li>
	<p>Multitude of built-in effect macros with control parameters</p>
	</li>
	<li>
	<p>DMX, ArtNet and sACN control capability</p>
	</li>
	<li>
	<p>16-bit dimming control for smooth, perfect fades</p>
	</li>
	<li>
	<p>Easy to use OLED display</p>
	</li>
	<li>
	<p>Rugged design for years of rough use in the most extreme conditions.</p>
	</li>
	<li>
	<p>Adjustable Pulse Width Modulation (PWM) and RDM (Remote Device Management) for added flexibility</p>
	</li>
	<li>
	<p>USB port for fixture software updates</p>
	</li>
	<li>
	<p>Built-in alignment pins to insure perfectly straight linear arrays</p>
	</li>
</ul>

<h2>SPECIFICATIONS</h2>

<h3>OPTICAL</h3>

<ul>
	<li>Light Source: 896 LEDs (tri-color) SMD 5050, 0.784 W, (252 mA), 50,000 hours life expectancy</li>
	<li>Light Source: 432 LEDs, (CW) 1.56 W, (696 mA), 5861K, 50,000 hours life expectancy</li>
	<li>Color Temperature (at full): 7757 K</li>
	<li>CRI: 90.3</li>
	<li>Beam Angle (Combine): 98&deg; x 57&deg;</li>
	<li>Beam Angle (Plate): 123&deg;</li>
	<li>Beam Angle (Beam): 95&deg; x 50&deg;</li>
	<li>Field Angle (Combine): 146&deg; x 122&deg;</li>
	<li>Field Angle (Plate): 160&deg;</li>
	<li>Field Angle (Beam): 138&deg; x 100&deg;</li>
	<li>Lumens (Combined): 71,620</li>
	<li>Lumens (Plate): 18,600</li>
	<li>Lumens (Beam): 54,381</li>
	<li>Illuminance (Combined): 1591 lux @ 5 m</li>
	<li>Illuminance (Plate): 231 lux @ 5 m</li>
	<li>Illuminance (Beam): 1432 lux @ 5 m</li>
	<li>Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz</li>
</ul>

<p>&nbsp;</p>

<h3>DYNAMIC EFFECTS</h3>

<ul>
	<li>Tilt: 180&deg;</li>
	<li>Tilt Ranges: 0&deg; to 180&deg;</li>
	<li>Dimmer: Electronic</li>
	<li>Shutter/Strobe: Electronic</li>
	<li>Strobe Rate: 0 to 30 Hz</li>
	<li>Standalone Color Mixing: Yes</li>
	<li>Dim Modes: 4</li>
	<li>Built-in Automated Programs: Yes</li>
</ul>

<p>&nbsp;</p>

<h3>CONSTRUCTION / PHYSICAL</h3>

<ul>
	<li>Dimensions: 16.02 x 6.90 x 12.30 in (407 x 175.4 x 312.5 mm)</li>
	<li>Weight: 26.6 lb (12.1 kg)</li>
	<li>Exterior Color: Black</li>
	<li>Housing Material: Magnesium alloy</li>
</ul>

<p>&nbsp;</p>

<h3>CONNECTIONS</h3>

<ul>
	<li>Power Connection: Edison (Local) plug to Seetronic Powerkon IP65</li>
	<li>Power Input: Seetronic Powerkon IP65</li>
	<li>Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65</li>
	<li>Cable Length (power): 5 ft (1.5 m)</li>
</ul>

<p>&nbsp;</p>

<h3>CONTROL</h3>

<ul>
	<li>Control Protocol: Art-Net, DMX, RDM, sACN</li>
	<li>DMX Channels: 8, 11, 13, 22, 74 or 89</li>
	<li>Art-Net Channels: 8, 11, 13, 22, 74 or 89</li>
	<li>Modes/Personalities: 6 personalities (8, 11, 13, 22, 74, 89)</li>
</ul>

<p>&nbsp;</p>

<h3>ELECTRICAL</h3>

<ul>
	<li>Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)</li>
	<li>Power and Current: 720 W, 7.14 A @ 100 V, 60 Hz</li>
	<li>Power and Current: 740 W, 6.36 A @ 120 V, 60 Hz</li>
	<li>Power and Current: 716 W, 2.35 A @ 208 V, 60 Hz</li>
	<li>Power and Current: 696 W, 3.27 A @ 230 V, 50 Hz</li>
	<li>Power and Current: 709 W, 3.02 A @ 240 V, 50 Hz</li>
</ul>

<p>&nbsp;</p>

<h3>CERTIFICATIONS / QUALIFICATIONS</h3>

<ul>
	<li>CE, MET, FCC,</li>
	<li>IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve</li>
	<li>Temperature (Ambient): 14 &deg;F to 113 &deg;F (-10 &deg;C to 45 &deg;C)</li>
</ul>


Color STRIKE M is an IP65 rated motorized strobe/wash with two ultra-bright, white light tube elements with a color-mixing, and pixel-mappable face.

Rent the Chauvet Color Strike M IP LED Blinder

Purchase the Chauvet Color Strike M IP LED Blinder

Quick Reference Guide

DMX Charg

User Manual

CHAVCOLORSTRIKEM

Once your rental quote is requested, a representative will contact you to discuss availability, pricing, shipping method and costs.
