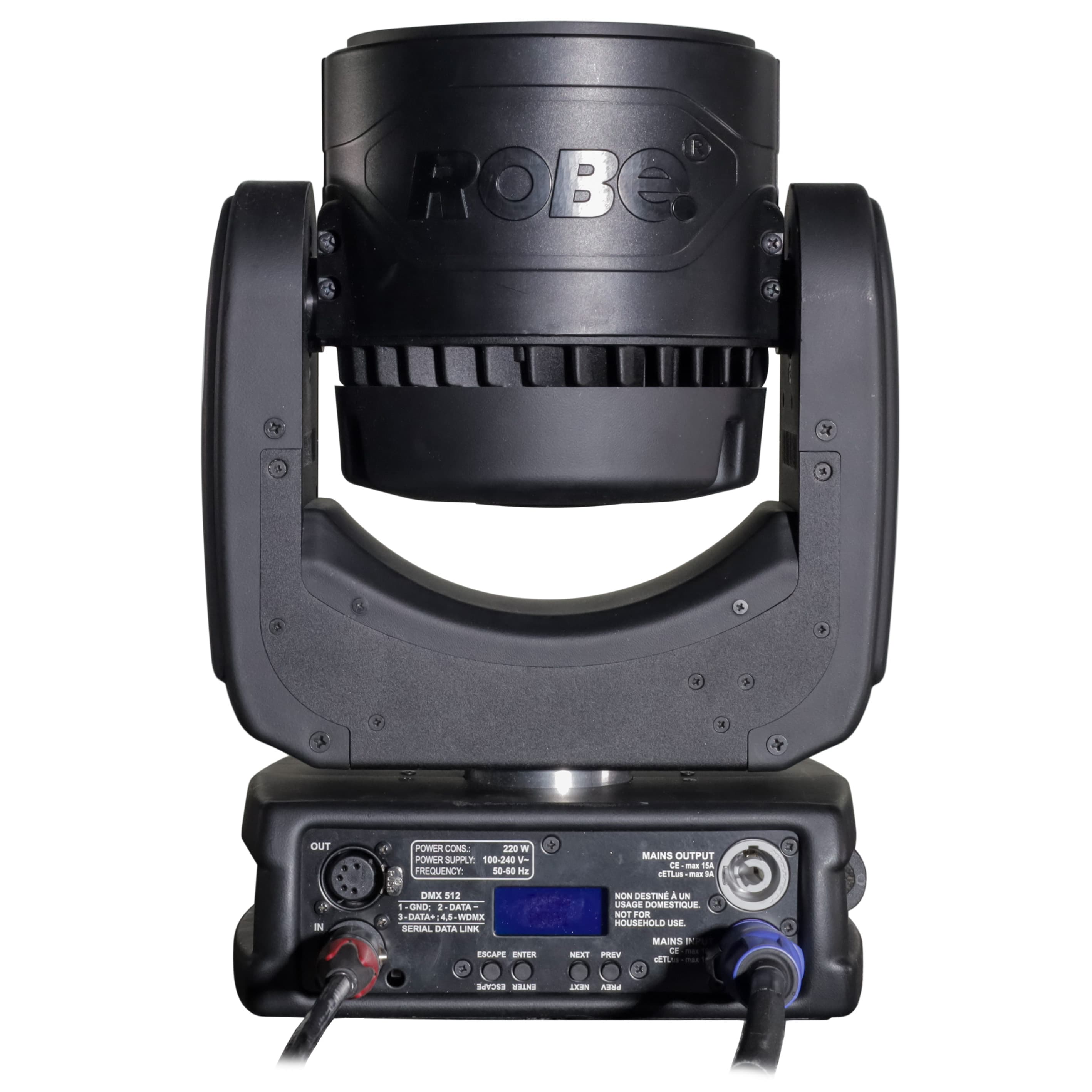

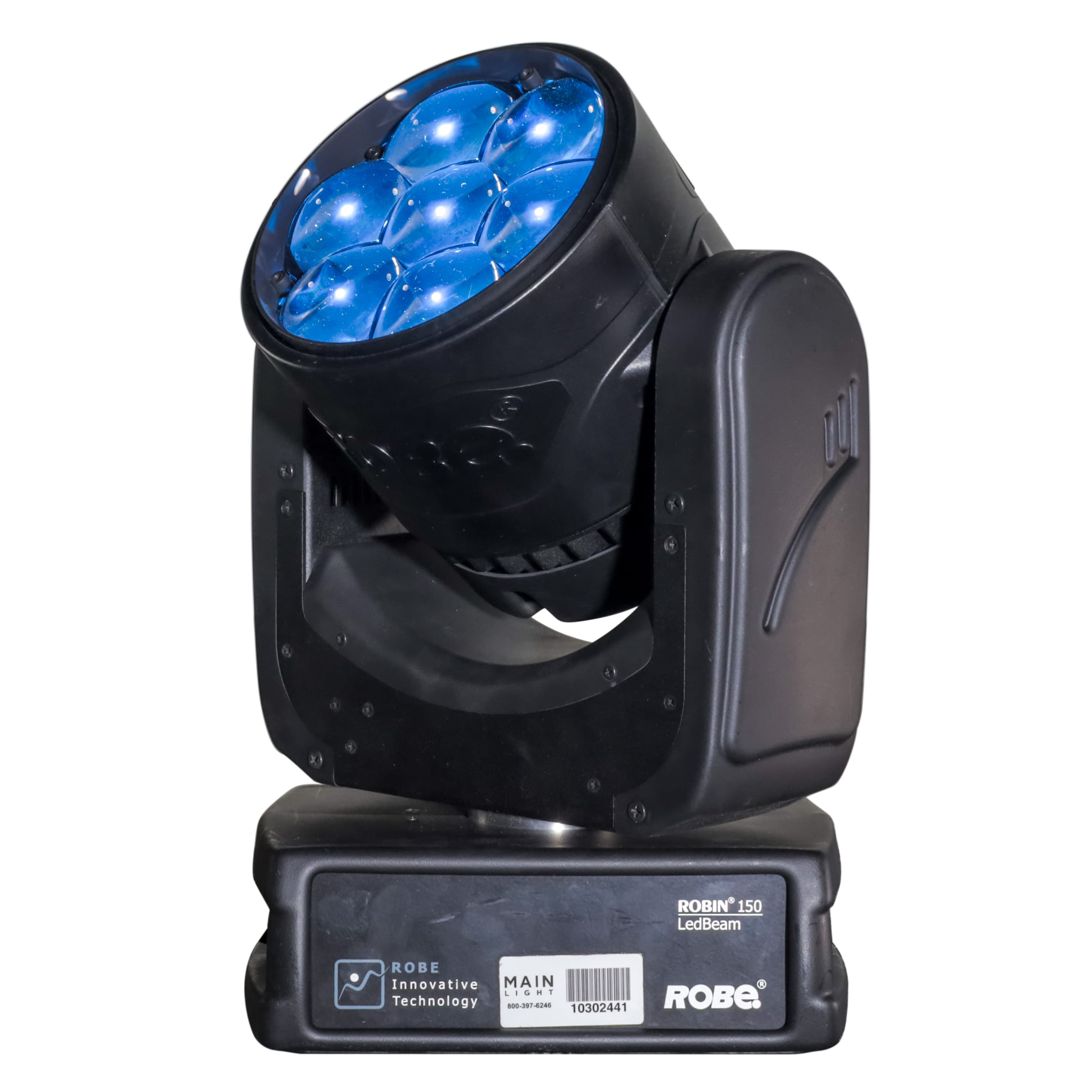

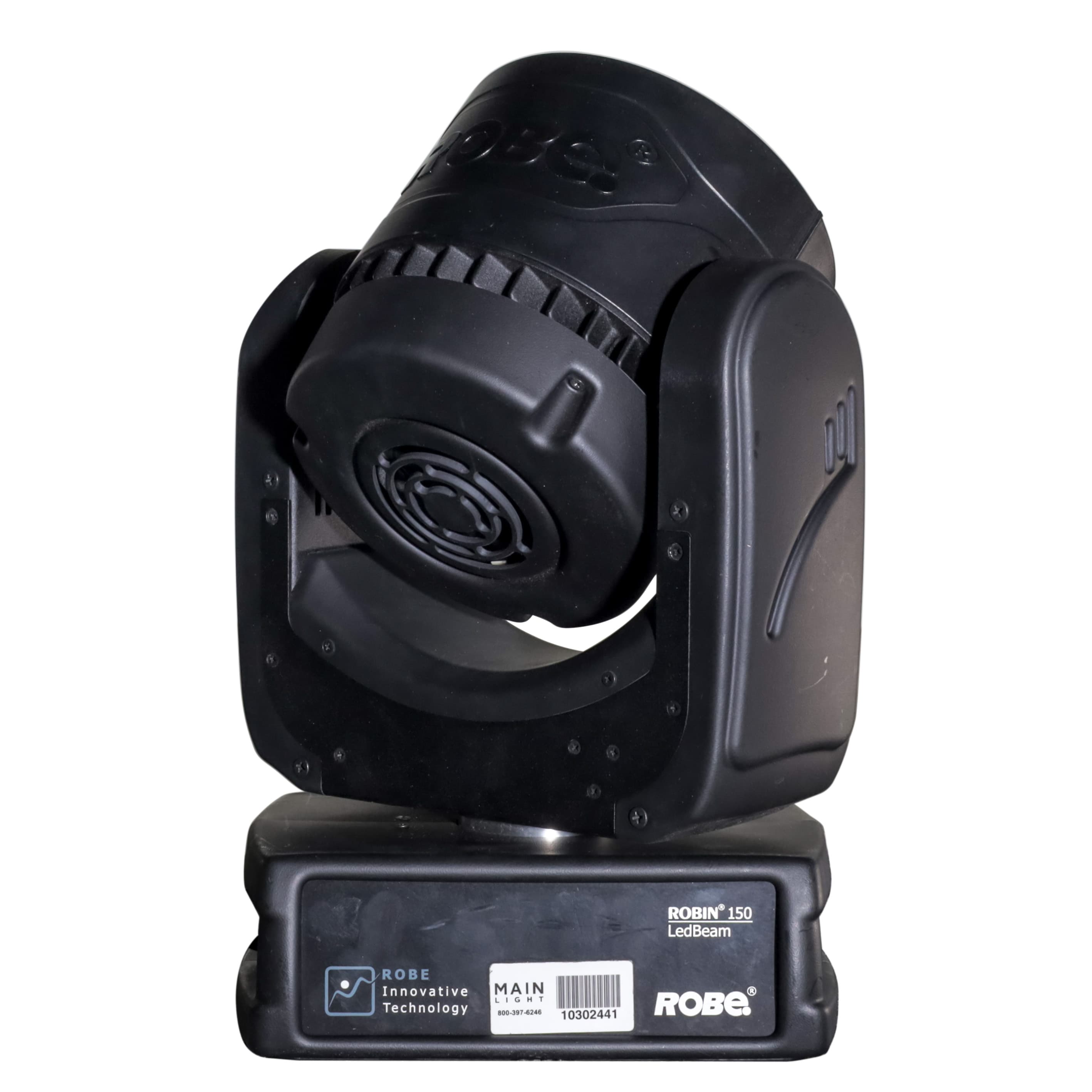

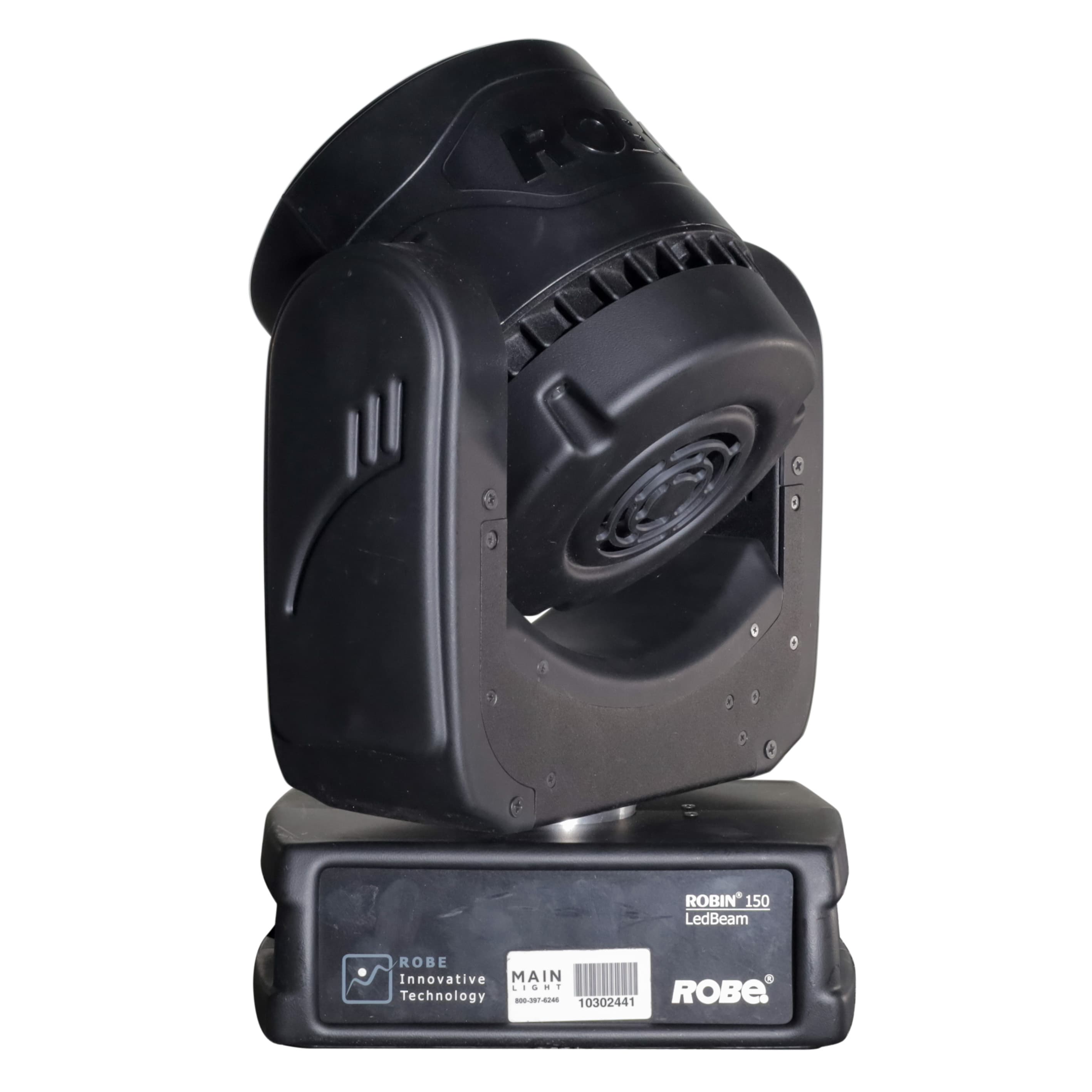

LED Beam 150

Source

• Light source type: 7x 40W RGBW multichips
• LED life expectancy: min. 50.000 hours
• Typical lumen maintenance: L70/B50 @ 50.000 hours

Optical system

• Robe’s proprietary optical design
• High - efficiency zoom optical system, ratio: 15,5:1
• Zoom range: 3,8° - 60°
• Fixture total lumen output: 2.842 lm
• Illuminance: 12.200lx @ 5 m
• Innovative lens coating technology (Patent pending)

Dynamic Effects and Features

• Colour mixing mode RGBW or CMY
• Variable CTO: 2.700K - 8.000K
• Virtual Colour Wheel: with 66 preset swatches
• Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4.200K (red shift and thermal delay)
• Motorized zoom
• Pre-programmed random strobe & pulse effects
• High resolution electronic dimming: 0 - 100%

Control and programming

• Setting & Addressing: two-row LCD display & 4 control buttons, stand-alone operation with 3 editable programs (each up to 40 steps)
• Protocols: USITT DMX-512, RDM
• Wireless CRMX™ technology from Lumen Radio - on request
• DMX Protocol modes: 2
• Control channels: 22, 16
• Pan/Tilt resolution: 8 or 16 bit
• RGBW/CMY: 8 or 16 bit
• Zoom: 8 or 16 bit
• Dimmer: 8 or 16 bit (internal 18 bit)

Movement

• Pan movement: 450°
• Tilt movement: 228°
• Movement control: Standard and Speed
• Controllable speed of Pan/Tilt movement
• Automatic Pan/Tilt position correction

Thermal specification

• Maximum ambient temperature: 45°C (113°F)
• Maximum surface temperature: 80°C (176°F)
• Minimum operating temperature: -5°C (23°F)

Noise Levels

Sound pressure level:

• 18 dB(A) at 1 m (quiet mode)
• 34 dB(A) at 1 m (auto mode)

Sound power level:

• 26 dB(A) (quiet mode)
• 42 dB(A) (auto mode)

Electrical specification and connections

• Power supply: Electronic auto-ranging
• Input voltage range: 100-240 V, 50/60 Hz
• Power consumption: Max. 220 W
• Power in/out connector: Neutrik powerCON in/out
• DMX and RDM data in/out: Locking 5-pin XLR

Approvals

• CE Compliant
• cETLus Compliant

Mechanical specification

• Height: 337 mm (13.3")
• Width: 244 mm (9.6")
• Depth: 149 mm (5.9")
• Weight: 5.7 kg (12.6 lbs)
• Ingress protection rating: IP20

Rigging

• Mounting points: 1 pair of ¼-turn locks
• 1x Omega adaptor with ¼-turn quick locks
• Universal operating position
• Safety cable attachment point
