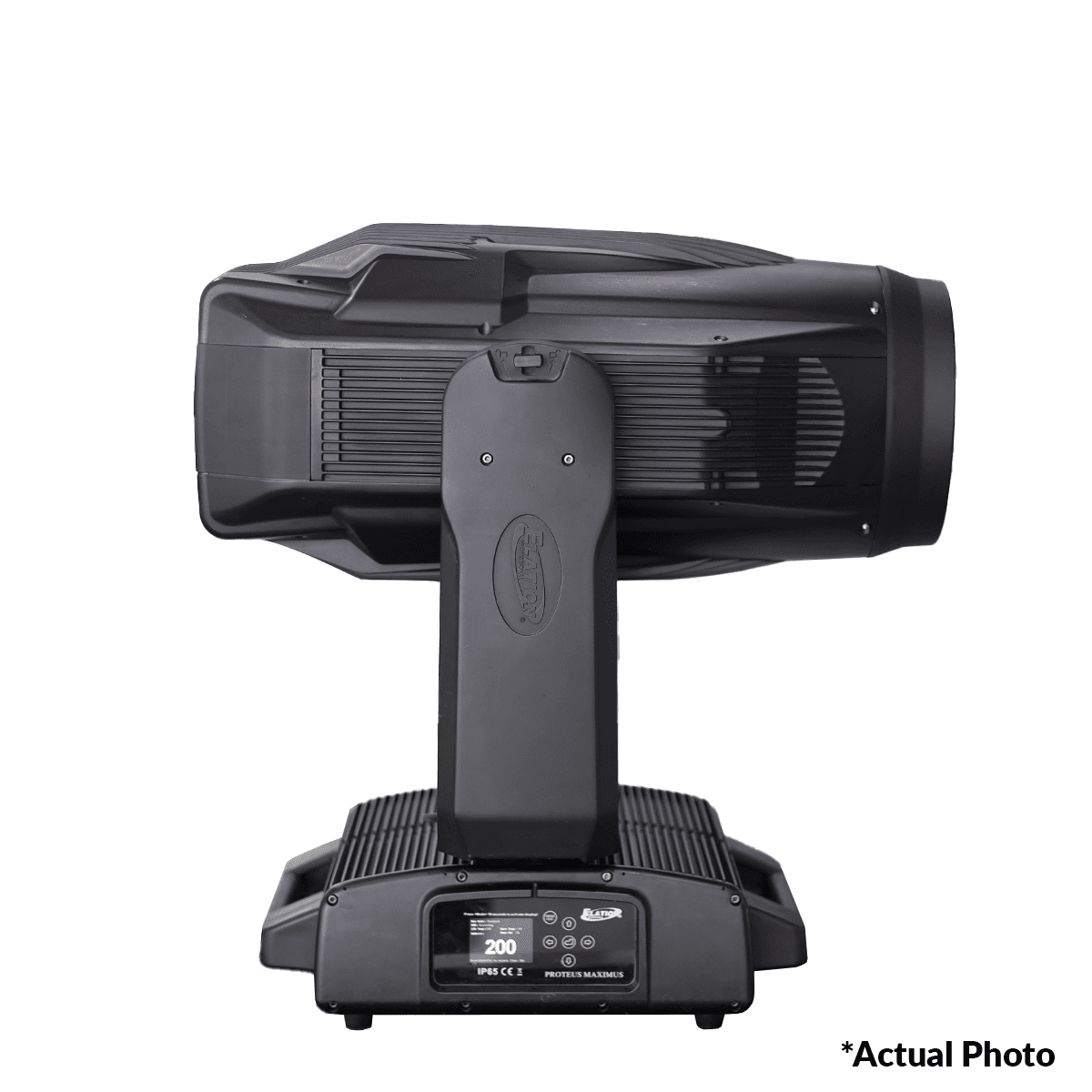

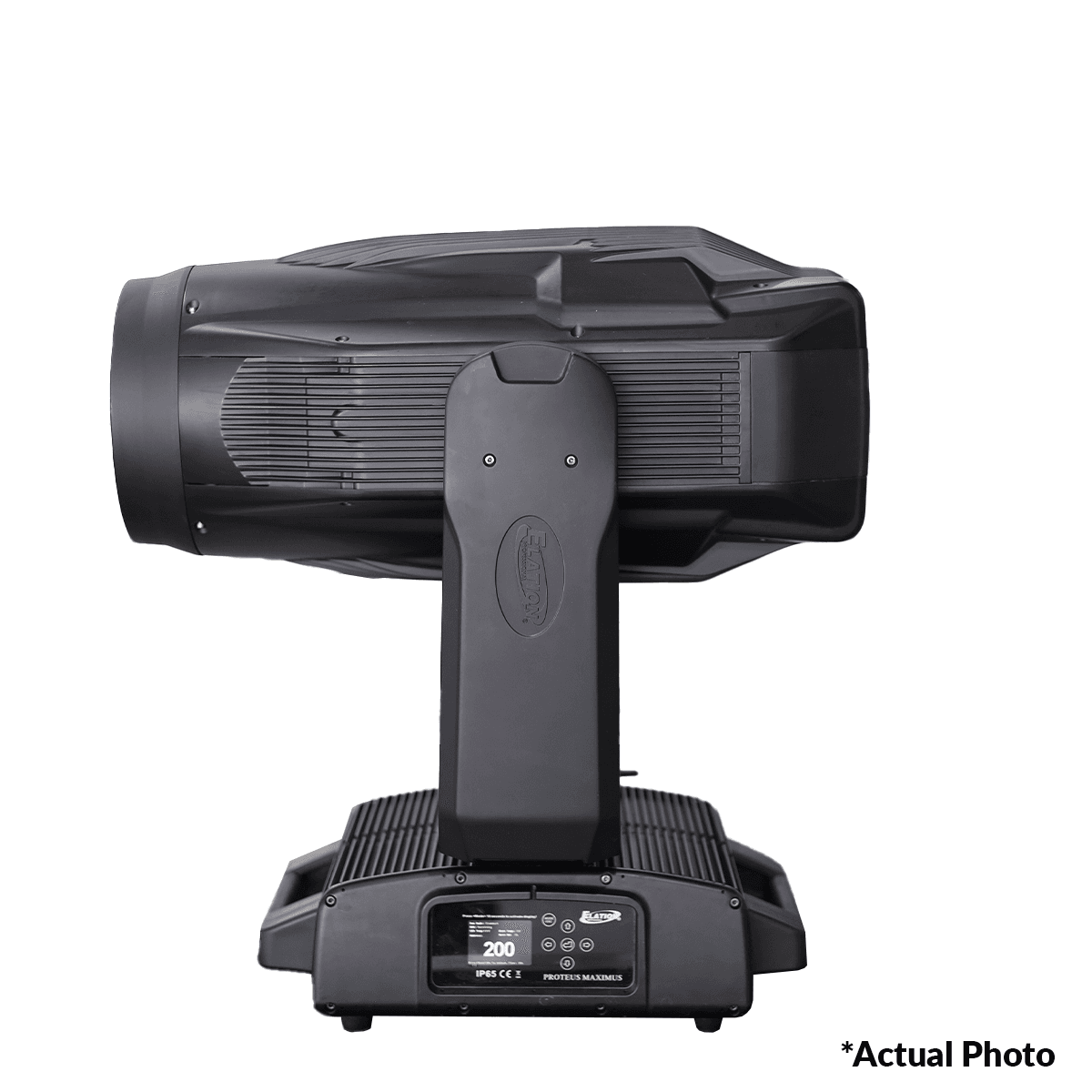

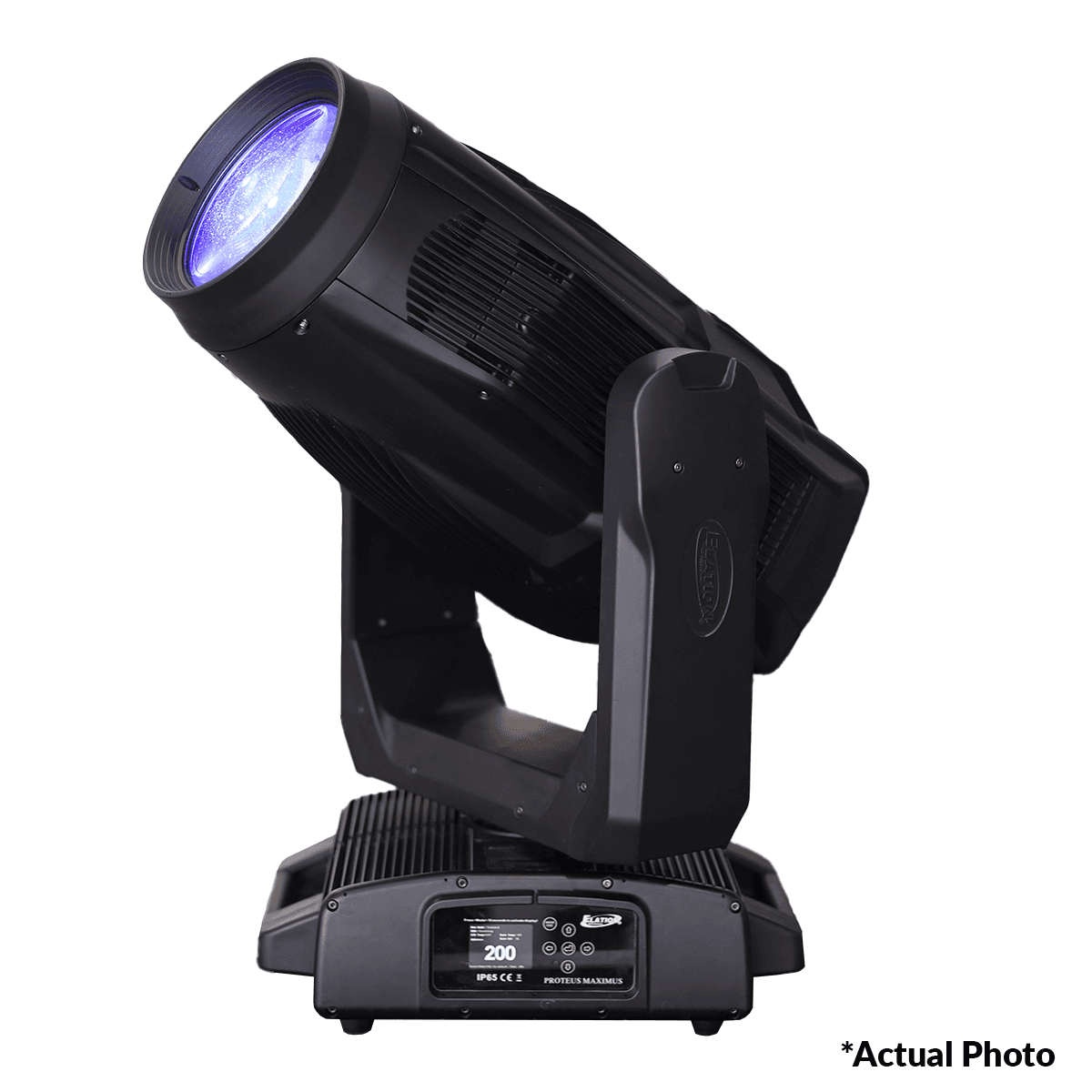

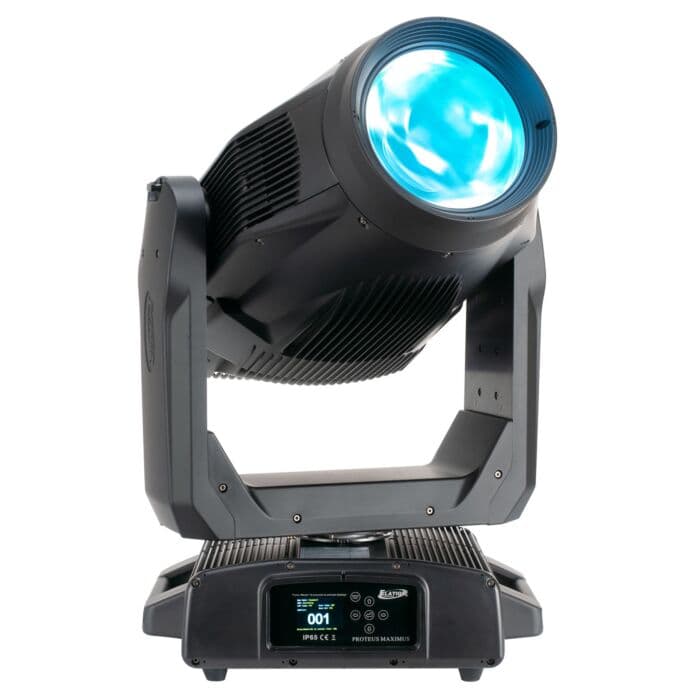

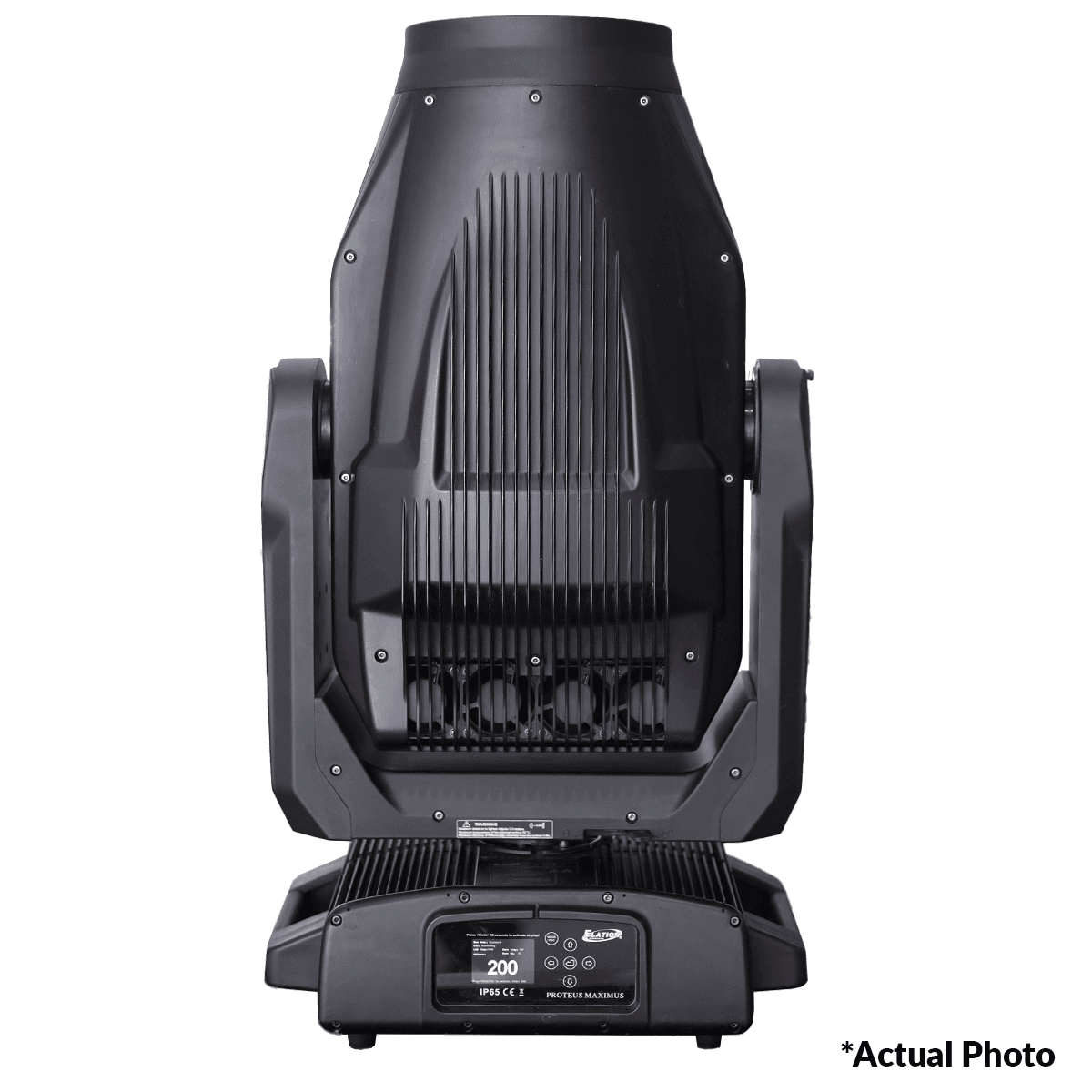

PROTEUS MAXIMUS

SOURCE

• 950W 6,500K Bright White LED Engine
• 30,000 Hour Average LED Life*
• *May vary depending on several factors including but not limited to:
• Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

• 50,000 Total Lumen Output
• CRI 70+ (82+ with HCRI Filter)
• 2:1 Hotspot Ratio
• Zoom Range 5.5° - 55°
• Beam Angle 4.8° - 41.2°
• Field Angle 6.1° - 51°

EFFECTS

• Motorized Zoom (Large 180mm Front Aperture)
• 4 Rotating Full Blackout Framing Blades
• +/-45° Framing Indexing
• Full 360° Bi-Directional Animation Wheel
• 4-Facet and Linear Rotating Prisms
• 2 Variable Frost Filters (Light and Wash)
• Internal Color, Framing, Prism, and Frost Macros
• Motorized Iris with Variable Pulse Effects
• Variable 16-bit Dimming Curve Modes
• High Speed Electronic Shutter and Strobe
• DMX Controllable LED Refresh Rate

COLOR

• CMY Color Mixing
• Linear CTO Color Correction
• 6 Dichroic Colors including High CRI Filter and UV

GOBOS

• 2 Gobo Wheels
• 6 Rotating / Indexing Interchangeable Glass Gobos
• 7 Static Glass Gobos

CONTROL / CONNECTIONS

• 2 DMX Channel Modes (37 / 61)
• 16-bit Pan, Tilt and Dimming Control
• Motorized Focus and Auto-Focus Presets
• DMX, RDM, Art-NET, sACN Protocol Support
• (6) Button Touch Control Panel
• Full Color 180° Reversible LCD Menu Display
• Hibernation Mode (Power Save)
• 5pin XLR DMX In/Out
• IP65 RJ45 ethernet In/Out
• IP65 Locking Power Cable In
• With Wired Digital Communication Network

SIZE / WEIGHT

• Length: 18.0 in (458mm)
• Width: 23.3 in (591mm)
• Height: 32.5 in (825mm)
• Weight: 117 lbs. (53kg)

ELECTRICAL

• AC 120-240V 50/60Hz
• Max Power Consumption 1,400W
• 14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS

• CE | cETLus | IP65
